C091-31D107-1002, Amphenol Industrial Amphenol, C 091 D 7 Pole M16 Din Socket, 5A, 100 V ac/dc IP67, Female, Cable Mount, Разъем

4592317
Номер производителя: C091-31D107-1002Производитель: Amphenol Industrial
Цена за шт.
10030.80 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

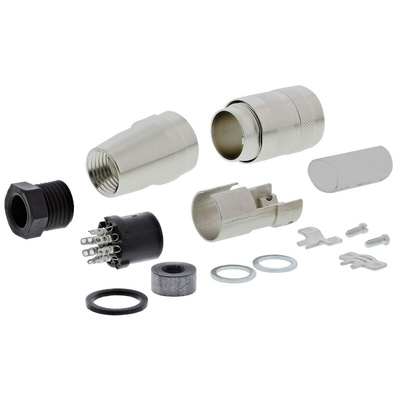

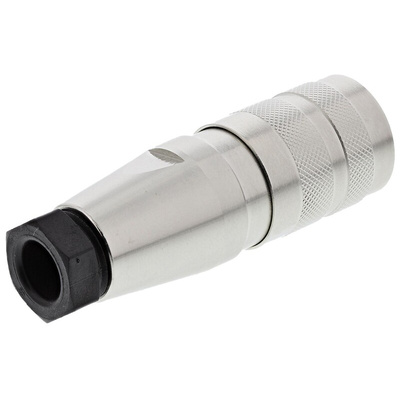

Straight Cable Socket

From Amphenol, this C091 Series cable mount connector features a screw-locking thread for robust mating attenuation. The connector, when mated, boasts a high degree of enviromental protection.

Note

5-way and 7-way are available in two configurations.

Approvals

UL

C091D - Metal

Amphenol C091D robust circular DIN connectors manufactured to the highest standard in brass and die-cast aluminium, nickel-plated to suit the most demanding industrial applications. Ideal for medical, robotic, automotive, instrumentation, CCTV and computer interface applications.

Screw locking
IP67 (in accordance with DIN 40050)
Silver/gold contact plating
Internal strain relief

Техническая спецификация
pdfC091 31D107 100 2 Data Sheet
pdfC091 A/B/D Series Circular Connectors Catalogue
