6111-284, Megger DCM300E Leakage Clamp Meter, Max Current 300A ac CAT II 600 V, CAT III 500 V With UKAS Calibration

AVO DCM 300E

Fully IEC1010-1 and IEC101-2-032 compliant for circuits up to 500V phase to phase or 300V phase to earth CAT III or 600V CAT II
30mA and 300mA ranges for leakage current measurement
0.01mA resolution on 30mA range
30A and 300A ranges for power measurements
Data hold facility
Maximum conductor size 40mm diameter
3200 count LCD display with analogue bar graph

Supplied with

Batteries, instruction manual, carrying case.

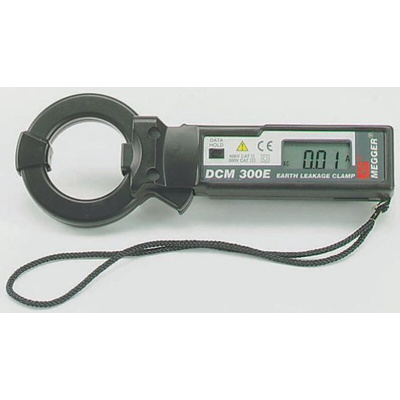

Megger DCM300E Clamp Meter, 0.01mA Resolution, 40mm Jaw Size

Rout out earth leakage currents in your circuit using the DCM300E clamp meter from Megger. Thanks to its hinged jaw, you can easily secure it around a cable without shutting down your power supply, making it a cinch to use. The unit's extra insulation minimises the risk of short circuits and helps to protect you against electric shock. A data hold feature saves your reading on the device's screen, so it stops your measurements from slipping out of sight for easy data recording. This tool comes with batteries, so it's ready to use.

Features & Benefits

• Compact dimensions of 176 (H) x 64 (W) x 23mm (D) make it easy to transport
• Light weight of 125g for ease of portability
• Comes with a carry case for safe storage
• Analogue bar graph offers simple data analysis

Applications

• Infrastructure and building maintenance
• Electrical technicians
• Manufacturing plants
• Automotive repair

Does this clamp meter switch itself off?

Yes, the tool powers off automatically if you haven't used it for 10 minutes. This helps to preserve battery life for long-lasting use.

DCM300 User Guide

AVO DCM300E Earth Leakage Clamp Meter
