Fluke T5-1000, Fluke T5 Multifunction Tester, UKAS Calibration, Мультиметр

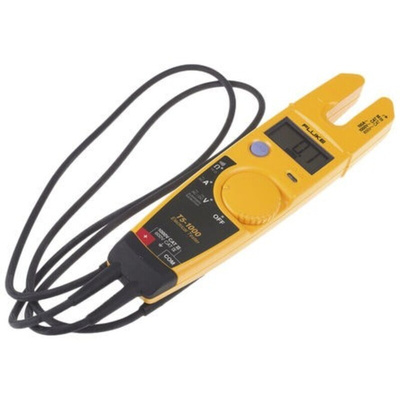

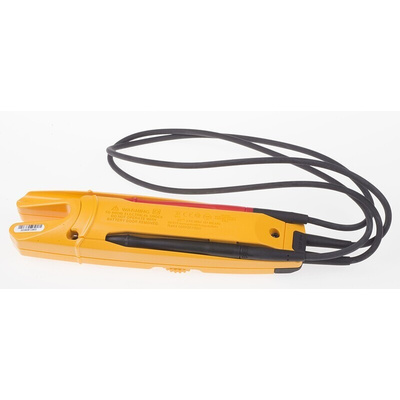

Fluke T5-600 & T5-1000 Multi-function Electrical Testers

Fluke T5 electrical testers are compact tools for checking voltage, continuity and current. With a T5 model, the operator has only to select volts, ohms or current and the tester does the rest. Open Jaw current allows checking current up to 100 A, without breaking the circuit.

Features & Benefits

• Automatically measures volts ac and volts dc with precise digital resolution
• Displays resistance to 1000 Ω
• Easy and accurate Open Jaw current measurement
• Continuity beeper
• Compact design with neat probe storage
• Rugged enough to withstand a 10 ft (3 m) drop
• Detachable SlimReach probe tips customised for national electrical standards
• Test leads accept Fluke accessory test clips
• Can stay connected much longer than solenoid type tester
• Auto off mode to conserve battery life (powered by AA battery x2)
• Dimensions 30.5 x 51 x 203 mm
• Weight 300 g

Approvals

UL, CSA, VDE

Standards

EN61010-1 CAT III 600 V

Supplied with

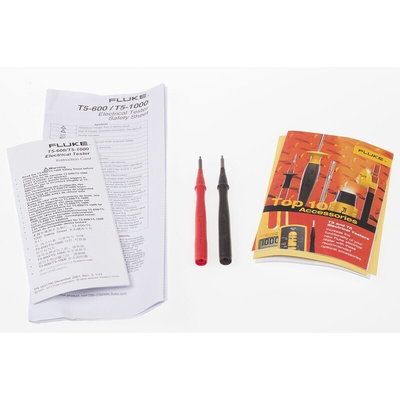

Electrical tester, detachable 4 mm TP4 measuring tips, instructions (T5-H5-1AC kit [T5-1000] also includes H5 holster and 1AC voltage tester)

Optional accessories:
H5: Holster with belt loop for T5-600 / T5-1000 2921246

Frequently asked questions and answers:

Does this come with a calibration certificate?

Calibration is an additional service that we provide to customers. Calibrated products have an appropriate information shown within the product specification section at the bottom of the page. For more information please contact our Customer Service Centre.

Can I use this to test if a fuse is good or bad?

Yes, T5 can check voltage, continuity and current. It also features loud audible buzz when testing continuity.

Fluke T5 Voltage, Continuity & Current Tester

When things are tight, reach for the Fluke T5
