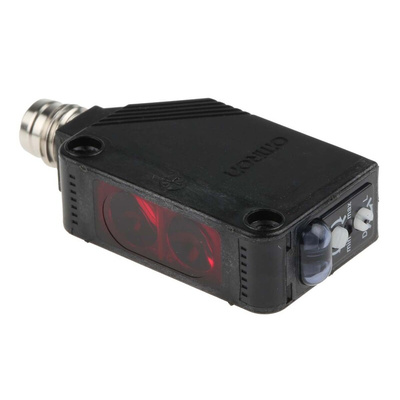

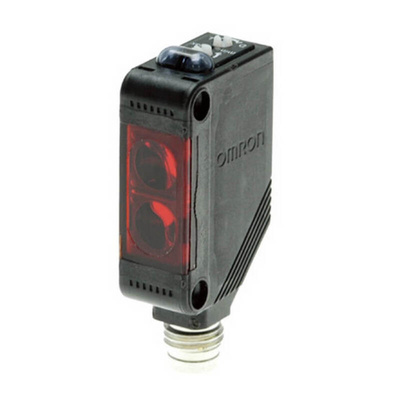

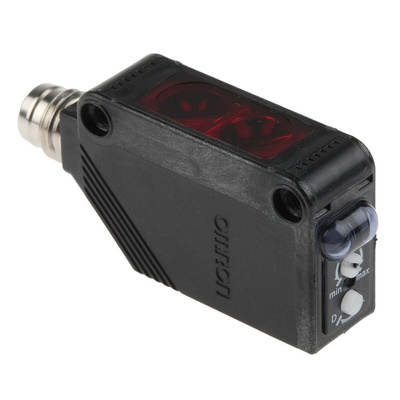

E3ZB86, Omron Retroreflective Photoelectric Sensor, Block Sensor, 100 → 500 mm Detection Range, Фотоэлектрический датчик

E3Z series photoelectric switches

Photoelectric sensor suitable for a wide range of applications
Pre-wired connection method (standard length 2 meters) or with M8 connector
Degree of protection IP67 (IEC60529)
Supply voltage: 12 to 24 V dc ±10% PNP output
Sensitivity adjustment via rotary potentiometer

OMRON Photoelectric Sensor, Polarity-Free Red Light, 30mA Maximum Current Consumption - E3Z Series - E3ZB86

For pinpoint container detection in your process and packaging equipment, count on this photoelectric sensor from OMRON. It works by picking out objects when they interrupt its continuous light beam, triggering an action from your controller. The unit is equipped with a built-in amplifier, making it your go-to when you're working with transparent bottles. A detection range between 80 and 500mm means it fits the bill for smaller setups. Thanks to an operating temperature range between -25°C and +55°C, it won't break a sweat in demanding conditions.

Features & Benefits

• Consumes just 30mA during operation, making it an energy-efficient choice for your system
• Comes with a one-turn sensitivity adjuster for simple and time-saving configuration
• Weighs just 20g, so it's easy to handle during installation and won't strain the mounting surface
• IP67 rating tells you that it's fully dustproof and handles immersion in up to 1m of water for 30 minutes

Applications

• Medical equipment
• Food production industry
• Chemical laboratories

How do I link this sensor to my equipment?

This device comes with an M8 connector to achieve an easy link to your machine's control unit.

Datasheet_E3Z-B

Brochure - E3Z Photoelectric Sensors
