ML100.105, PULS MiniLine MLY Switch Mode DIN Rail Power Supply, 220 → 240V ac ac Input, 48V dc dc Output, 2.1A Output, 100W, Блок питания

PULS DIN Rail Power Supply

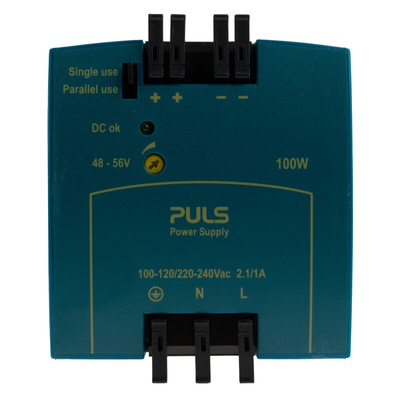

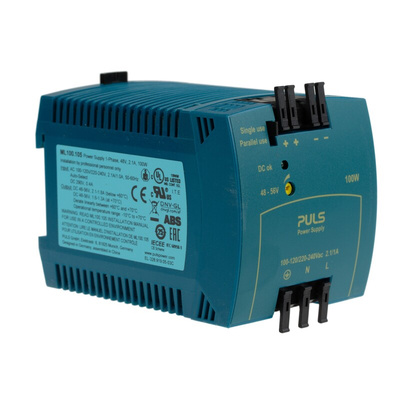

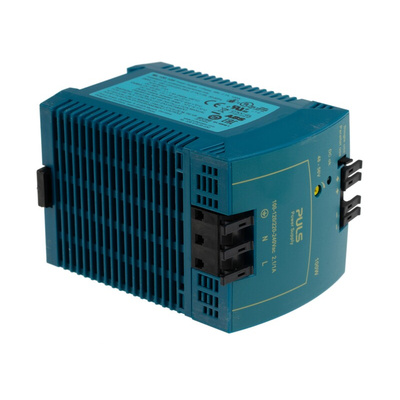

The PULS MiniLine MLY series single-phase DIN-rail switch-mode power supply has an adjustable output voltage ranging between 48VDC and 56VDC (adj. by front panel potentiometer) with 2.1A current. This cost-optimised power supply specifically designed with uncompromised quality and reliability for high-performance. This unit is equipped with an input voltage range switching between 100VAC and 120VAC/220VAC and 240VAC. It has a robust plastic housing with a fine ventilation grid.
Note:
Auto range
Preset voltage with jumper fitted
Power de-rating between 60°C and 70°C

Features and Benefits

Miniature size and lightweight

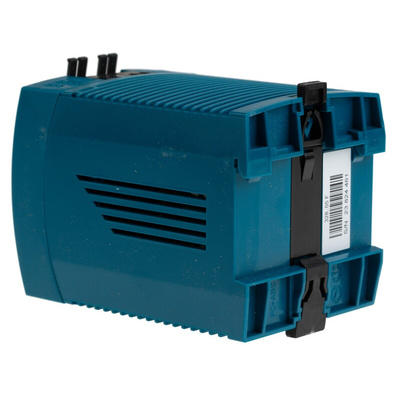

Quick and easy mounting onto a 35mm DIN-rail
Spring clamp terminals
Wide range auto select input
Efficiency is up to 91%
Power rating is 100W
Ripple factor and noise is 50mVpp
Adjustable to a parallel mode for load sharing
Overload and short-circuit protected
Output LED indicator
Operation temperature ranges between -10°C and 70°C

Applications

Industrial control
Automation
Communication and instrumentation equipment

Certifications

EN 61000-6-3
IP20 rated
VDE
SELV
UL approved
CSA certified
CB

Approvals

UL/cUL Recognised; CSA Certified

UL E198865
