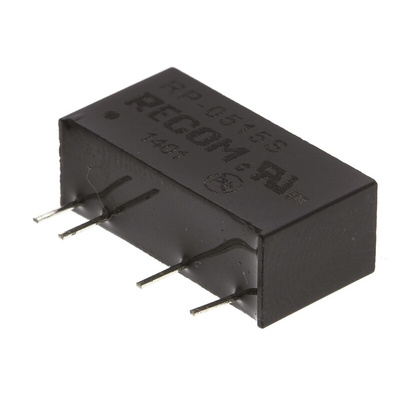

RP-0515S, Recom RP DC-DC Converter, 15V dc/ 66mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

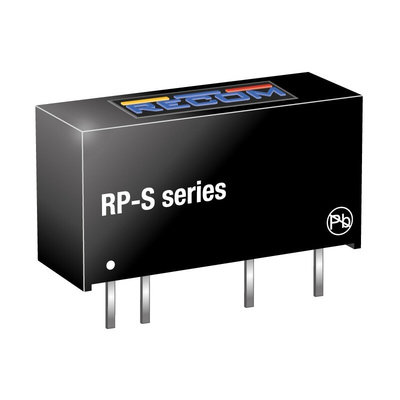

Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RP Series

The Recom RP series has very high isolation of 5.2 kVDC in a compact size. The DC/DC converters are EN-60601-1 certified, making them suitable for medical as well as IGBT driver applications.

Industrial standard pin out
Single and dual output options
250Vac rated
5.2kVdc isolation makes it ideal for telecom and safety applications
UL94V-0 package material
High efficiency (80% typ)
Short circuit protected.
Capacitor input filter

Note

Operating temperature is without derating.

Standards

Conforms to EN60950-1, UL609501-1, EN60601-1

RECOM DC-DC Converter, 100mV Maximum Ripple Voltage, 80% Conversion Efficiency - RP Series - RP-0515S

To reliably adapt your power sources to work with your industrial machinery, opt for this RECOM DC-DC converter. It changes input voltages between 4.5 and 5.5V into a smooth 15V output, making your electrical source compatible with high-voltage hardware. As its 80% efficiency rating demonstrates, the unit wastes minimal power so you get energy-efficient conversion. It's compatible with through-hole mounting, so you can install it easily using predrilled holes in your circuit board. By limiting ripple voltage to 100mV, the converter prevents disruption from electrical noise to ensure you get a stable power connection.

Features & Benefits

• High isolation voltage rating of 5.2kV indicates resistance to electrical surges
• Output voltage accuracy of ±5% for reliability
• Compact dimensions of 19.65 (L) x 7.05 (W) x 10.2mm (H) for convenient mounting in busy systems
• Integrated short-circuit protection helps minimise the risk of system damage from electrical faults

Applications

• Signalling systems
• Server management
• Construction industry

What's the operating temperature range of this DC-DC converter?

This product works safely at temperatures from -40°C to +85°C, making it suitable for intense industrial conditions, from cold stores to thermal processing.
