RP-1212S, Recom RP DC-DC Converter, 12V dc/ 84mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

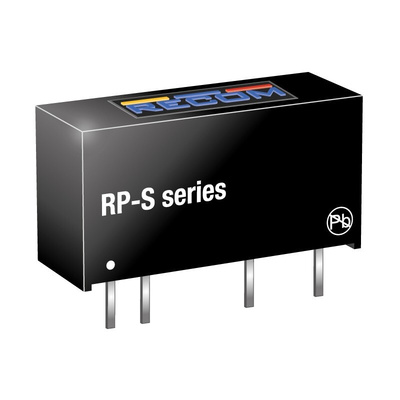

Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RP Series

The Recom RP series has very high isolation of 5.2 kVDC in a compact size. The DC/DC converters are EN-60601-1 certified, making them suitable for medical as well as IGBT driver applications.

Industrial standard pin out
Single and dual output options
250Vac rated
5.2kVdc isolation makes it ideal for telecom and safety applications
UL94V-0 package material
High efficiency (80% typ)
Short circuit protected.
Capacitor input filter

Note

Operating temperature is without derating.

Standards

Conforms to EN60950-1, UL609501-1, EN60601-1

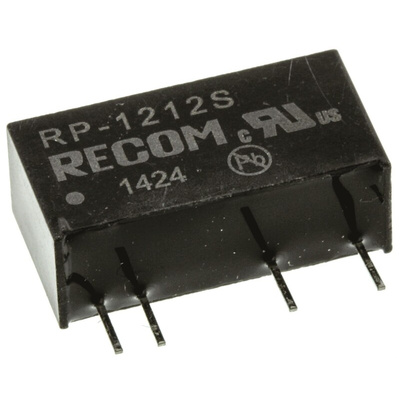

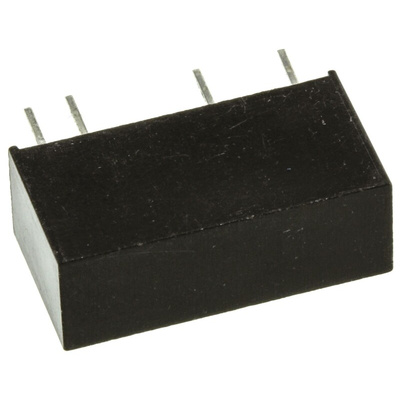

RECOM DC-DC Converter, 5.2kV DC Isolation, SIP Package - RP Series - RP-1212S

Need a DC-DC converter that provides a stable 12V DC supply to your PCB-mounted components? This unit from RECOM's RP series takes an input voltage fluctuating between 10.8 and 13.2V DC and outputs a steady 12V DC with an accuracy of ±5%. It also provides high isolation of 5.2kV DC, meaning you can use the converter to protect yourself and any linked equipment on your PCB from power surges. Efficiency of up to 78% reduces heat dissipation in your cabinet. The unit comes in a compact SIP package that helps you build a space-efficient system.

Features & Benefits

• Through-hole mounting method achieves a robust connection with your PCB
• Operating temperature range of -40°C to +90°C for safe use in harsh environments
• Compact dimensions of 19.65 (L) x 7.05 (W) x 10.2mm (H) save space on your PCB

Applications

• Medical settings
• IGBT drivers
• Safety systems
• Telecommunications

What's load regulation?

Load regulation is the measure of a power supply's ability to output a constant voltage despite changes in the load or output current. It's expressed as a percentage – the smaller the number, the more stable the power supply. This unit delivers 10% load voltage regulation.
