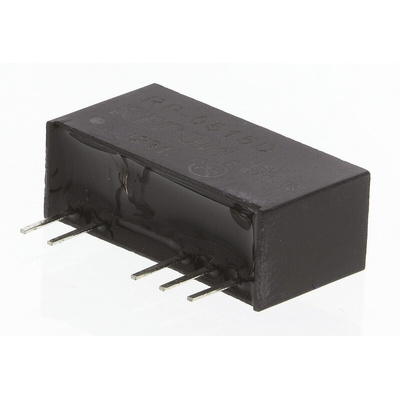

RP-0515D, Recom RP DC-DC Converter, ±15V dc/ ±33mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

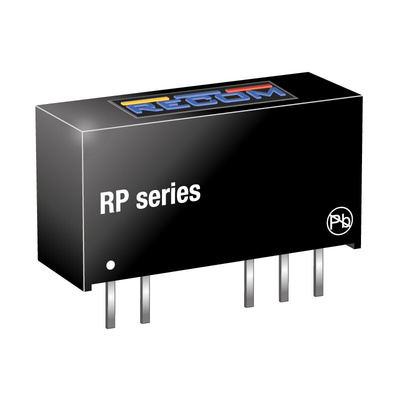

Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RP Series

The Recom RP series has very high isolation of 5.2 kVDC in a compact size. The DC/DC converters are EN-60601-1 certified, making them suitable for medical as well as IGBT driver applications.

Industrial standard pin out
Single and dual output options
250Vac rated
5.2kVdc isolation makes it ideal for telecom and safety applications
UL94V-0 package material
High efficiency (80% typ)
Short circuit protected.
Capacitor input filter

Note

Operating temperature is without derating.

Standards

Conforms to EN60950-1, UL609501-1, EN60601-1

RECOM DC-DC Converter, Dual Output, 2.6kV AC Isolation Voltage - RP Series - RP-0515D

This DC-DC converter from RECOM steps down the input DC voltage supply in your electronic device to a safe DC output voltage level. It's designed to adjust a broad input voltage supply between 4.5 and 5.5V DC to an output voltage level of ±15V DC, making it suitable for your low-voltage equipment. The versatile unit also offers isolation protection between the input and output voltage in your device to help prevent electric hazards.

Features & Benefits

• Power rating of 1W for safe use in low-power systems
• Continuous short-circuit protection helps prevent damage from current malfunction
• Operating temperature range between -40°C and +90°C to withstand demanding settings
• Dual output design for versatility

Applications

• Electric motors
• Digital cameras
• Game consoles
• Telecommunications systems
• Lighting fixtures

How do I mount this converter?

You can mount this DC-DC converter using the through holes in its body. It comes with an industry-standard pin-out that lets you quickly attach it to your PCB

How efficient is this DC-DC converter?

This converter has an efficiency rating between 80% and 82%, so you can be sure of minimal energy waste.

Datasheet

Datasheet - Rp Series
