RP-1215D, Recom RP DC-DC Converter, ±15V dc/ ±33mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

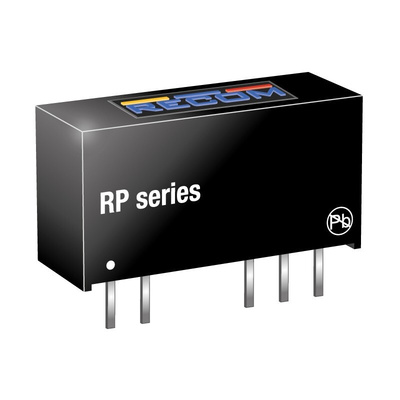

Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RP Series

The Recom RP series has very high isolation of 5.2 kVDC in a compact size. The DC/DC converters are EN-60601-1 certified, making them suitable for medical as well as IGBT driver applications.

Industrial standard pin out
Single and dual output options
250Vac rated
5.2kVdc isolation makes it ideal for telecom and safety applications
UL94V-0 package material
High efficiency (80% typ)
Short circuit protected.
Capacitor input filter

Note

Operating temperature is without derating.

Standards

Conforms to EN60950-1, UL609501-1, EN60601-1

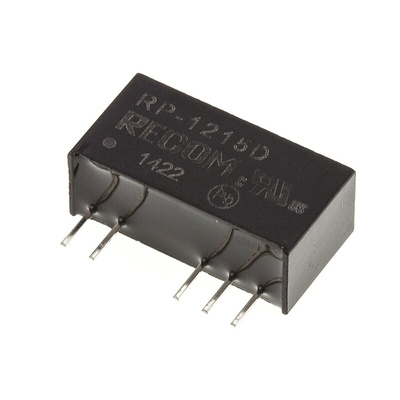

RECOM DC-DC Converter, Isolated, ±5% Output Voltage Accuracy - RP Series - RP-1215D

Regulate the DC voltage supply of your electric equipment using this DC-DC converter from RECOM. When it receives an input voltage supply between 10.8 and 13.2V DC, the unit steps it down to a safe output voltage level of ±15V DC. As it has two outputs, this is a versatile choice. Pre-drilled holes in the body let you mount it without drilling new holes, saving time and energy. A broad operating temperature range between -40°C and +90°C means you can safely use this unit in challenging environments.

Features & Benefits

• Isolates input and output voltages to prevent electric hazards
• Low output ripple and noise of 100mVp-p for reduced risk of electrical disturbance
• Output voltage accuracy rating of ±5% for reliable operation
• Industry-standard pin-out for hassle-free installation
• Efficiency rating between 80% and 82% for minimal energy loss

Applications

• Robotics systems
• Medical technology
• Railway applications
• Aviation engineering

How long will this DC-DC converter last?

This DC-DC converter has a maximum MTBF rating of 928,000 hours, so you can use it for a long time with a low risk of breakdown.
