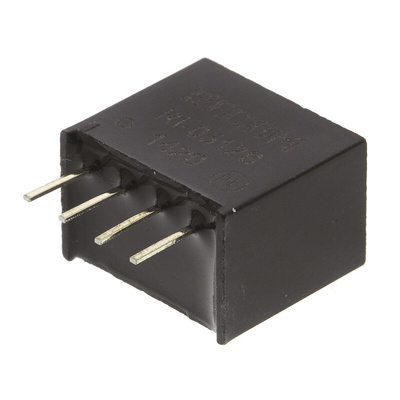

RI-0512S, Recom RI DC-DC Converter, 12V dc/ 167mA Output, 4.5 → 5.5 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

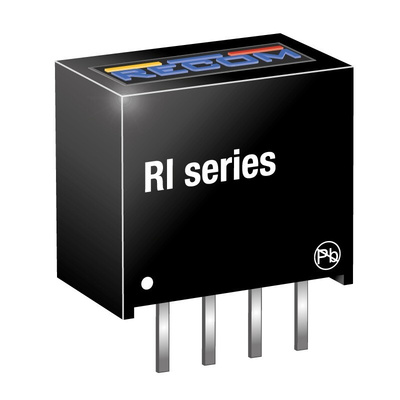

Recom 2W SIP Single Output Unregulated Isolated DC-DC Converter - RI Series

Industrial standard pin-out
No heatsink required
SIP4 package
High efficiency (80% typ)
Capacitor input filter
Isolation voltage 1kVdc (min)
Voltage; input ±10%, output ±5%
UL94V-0 package material

Note

Operating temperature is without derating.
/P suffix denotes continuous short circuit protection.

RECOM DC-DC Converter, ≤85% Efficiency, 1kV DC Isolation Voltage - RI Series - RI-0512S

When your portable devices need a safe source of power, this DC-DC converter from RECOM steps up. It takes an input of 5V DC (±10%) and raises it to a steady supply of 12V DC that's practical for charging battery-powered components. A 1kV DC isolation rating lets you breathe easy, as the unit's effective insulation means you and your equipment are shielded against even significant voltage surges. Thanks to a low ripple and noise value up to 200mVp-p, you can count on stable electrical characteristics, too, so the risk of EMI affecting signal quality is reduced.

Features & Benefits

• Efficiency up to 85% means little energy wasted as heat, so no need for a heatsink
• Mean time between failures up to 179,000 hours, so you know it's long-lasting
• Made of non-flammable materials to help minimise the spread of flames in a fire
• Compact size of 11.5 (L) x 7.6 (W) x 10.2mm (H) makes it a doddle to fit on your PCB

Applications

• Consumer electronics
• Medical devices
• Electric vehicles

What's the benefit of this product's SIP4 package?

This converter's compact SIP4 package is an industry-standard size and pin-out configuration. This makes it easy to install onto your PCB using the secure through-hole mounting method.

Datasheet
