RI-1205S, Recom RI DC-DC Converter, 5V dc/ 400mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C, Преобразователь

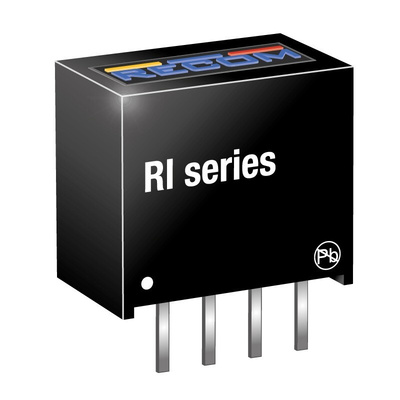

Recom 2W SIP Single Output Unregulated Isolated DC-DC Converter - RI Series

Industrial standard pin-out
No heatsink required
SIP4 package
High efficiency (80% typ)
Capacitor input filter
Isolation voltage 1kVdc (min)
Voltage; input ±10%, output ±5%
UL94V-0 package material

Note

Operating temperature is without derating.
/P suffix denotes continuous short circuit protection.

RECOM DC-DC Converter, ±15% Load Regulation, 11.5mm Length - RI Series - RI-1205S

Looking for a safe way to convert DC voltage to suit your industrial system? Choose this DC-DC converter from RECOM. It's a versatile option that takes input voltages from 10.8 to 13.2V DC and delivers the stable output of 5V DC needed by many commonly used devices. A load regulation of ±15% means you can rely on it for a constant supply with minimal disruption to your workflow. As the unit's designed for through-hole mounting and comes with predrilled holes, installation is quick and simple.

Features & Benefits

• 1.4g weight doesn't add excess load to your system
• 85% efficiency makes it an economical choice with minimal power wastage
• A high MTBF of 845,000 hours highlights its longevity
• 95% relative humidity rating means it functions even in moisture-rich conditions
• Compact dimensions of 11.5 (L) x 10.2mm (H) ensures it fits in areas where space is at a premium

Applications

• Telecommunications equipment
• Consumer electronics
• Industrial power systems

Can I use this converter in harsh conditions?

Yes. It has an operating temperature range between -40°C and +85°C, so it's suitable for use in demanding environments.
