RI-1212S, Recom RI DC-DC Converter, 12V dc/ 167mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C, Преобразователь

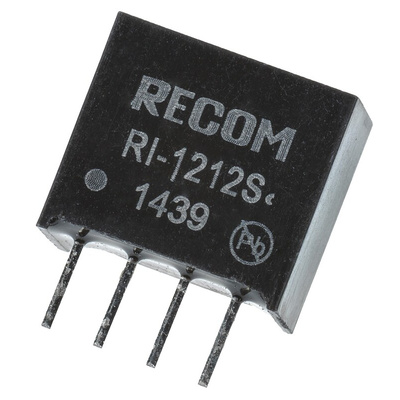

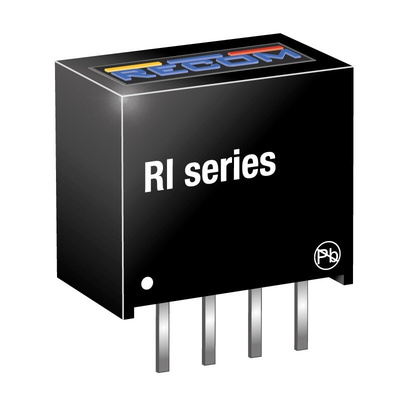

RECOM DC-DC Converter, Voltage Input ±10%, Voltage Output ±5% - RI Series - RI-1212S

Need to isolate your circuit where space is tight? This unregulated DC-DC converter from RECOM will take an input of 12V DC ±10% and output an isolated 12V DC ±5%. That ensures your people and equipment are safe from any dangerous voltages on the supply side. It's housed in a compact SiP package measuring just 11.5 (L) x 7.5 (W) 10.2mm (D). That means the 2-watt converter is packed into a footprint only slightly larger than that of the RO Series 1-watt converters.

Features & Benefits

• 1kVDC isolation protects the load and your people from power surges on the supply side
• Efficiency up to 87% minimises power wastage
• No heatsink needed, helping you build a compact system
• Operating temperature range of -40°C to +85°C means you can use it in harsh industrial environments
• No external components required, for ease of installation

Applications

• Medical devices
• Smart lighting
• Vehicle electrics

Is the package fire-safe?

This DC-DC converter is housed in a flame-retardant package that won't burn for more than 10 seconds, helping to prevent the spread of a fire.
