RI-1215S, Recom RI DC-DC Converter, 15V dc/ 133mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, Single Output, 1kV DC Isolation - RI Series - RI-1215S

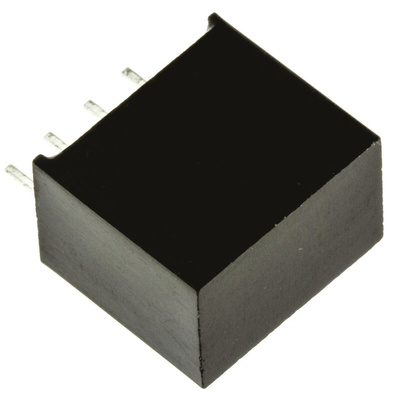

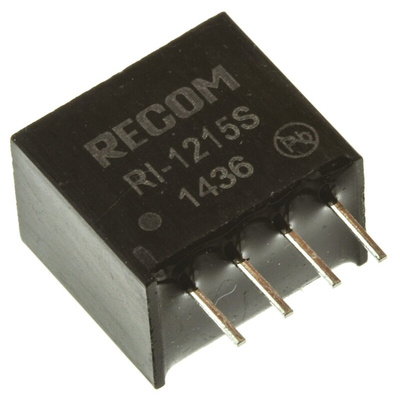

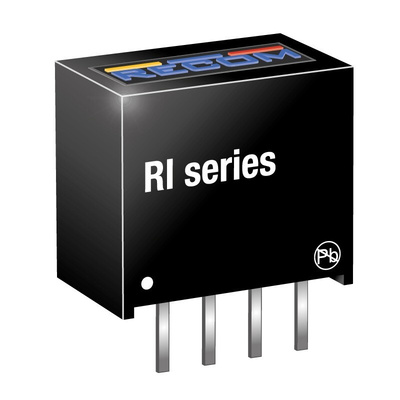

In a tight spot when it comes to electrical isolation? This DC-DC converter from RECOM will take an input of 12V DC ±10% and output a 15V DC supply. It's isolated from the input to protect your people and sensitive components from dangerous voltages. What's more, it's housed in a compact SiP package measuring 11.5 (L) x 7.55 (W) x 10.2 (H) so it doesn't take up much space. As an unregulated converter, it outputs a constant amount of power based on voltage x current.

Features & Benefits

• Line regulation of 1.2% and load regulation of 10% give you a steady supply even where there are fluctuations in the input or the load
• Through-hole mounting forms a robust connection with your PCB
• Operating temperature range of -40°C to +85°C means it's safe to use in challenging environments
• No heatsink needed, helping you simplify your installation
• Efficiency of up to 87% minimises energy wastage

Applications

• Renewable energy
• Lighting systems
• Factory automation

How many volts does this converter provide isolation against?

This DC-DC converter has an isolation voltage of 1kV DC, meaning it will isolate the output from voltage surges of up to 1,000 volts DC on the input.
