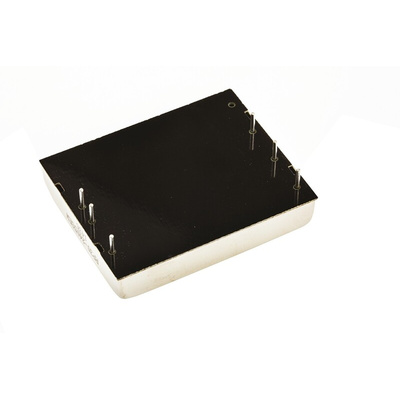

RP30-2405SEW, Recom RP30-EW DC-DC Converter, 5V dc/ 6A Output, 10 → 40 V dc Input, 30W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

Recom 30W Single/Dual and 49W Triple Output Regulated Isolated DC-DC Converter - RP30-TA Series

Regulated outputs
L-C input filter
Output current up to 8A
Six sided continuous shield
High efficiency
Isolation voltage 1.6kV
Industrial standard package size
4:1 wide input range
Input voltage ±1% max
Nickel coated copper case

Note

Operational temperature is with derating.

Standards

EN60950, UL1950, CSA950

Approvals

UL recognised

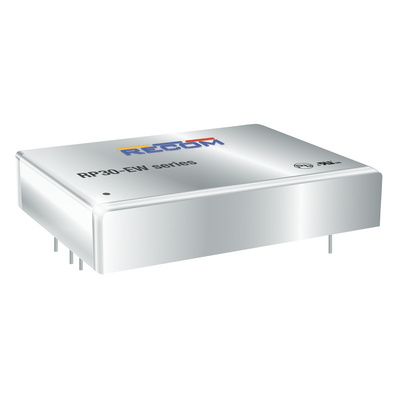

RECOM DC-DC Converter, 1.6kV DC Isolation Voltage, 24V DC Nominal Input Voltage - RP30-EW Series - RP30-2405SEW

When you need a stable low-voltage power supply for your equipment, turn to this DC-DC converter from RECOM. It puts the brakes on a 10 to 40V DC input and steps it down to a slow and steady 5V DC output. Featuring compact dimensions of 40.6 (L) x 10.2 (D) x 50.8mm (W) and industry-standard pinouts, this converter is designed for easy integration into your system. A wide 4:1 voltage range gives you flexibility over your power source. Plus, thanks to an impressive 87% efficiency rating, you can be sure it's not losing excess energy to heat, making it a sustainable option.

Features & Benefits

• Six-sided shielding protects against EMI for a clean signal you can rely on
• Wide operating temperature range of -40°C to +85°C means it's compatible with extreme conditions
• Through-hole mounting method offers convenient, electrically secure connections
• Vibration resistant up to 10G so it can handle challenging environments with ease

Applications

• Telecommunications equipment
• Consumer electronics
• Electrical engineering

Is this product isolated?

Yes. To help protect workers and delicate components in the event of an electrical fault, this converter is isolated against surges of up to 1.6kV.

Approvals

UL 1950; EN60950

UL E196683

Datasheet

Datasheet

Selection Guide - Power Supplies For Distributed Power Architecture
