RP30-2412SEW, Recom RP30-EW DC-DC Converter, 12V dc/ 2.5A Output, 10 → 40 V dc Input, 30W, Through Hole, +85°C Max Temp -40°C, Преобразователь

Recom 30W Single/Dual and 49W Triple Output Regulated Isolated DC-DC Converter - RP30-TA Series

Regulated outputs
L-C input filter
Output current up to 8A
Six sided continuous shield
High efficiency
Isolation voltage 1.6kV
Industrial standard package size
4:1 wide input range
Input voltage ±1% max
Nickel coated copper case

Note

Operational temperature is with derating.

Standards

EN60950, UL1950, CSA950

Approvals

UL recognised

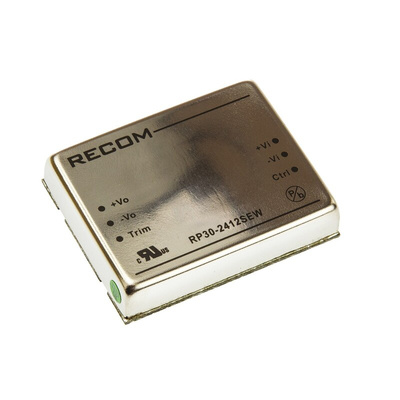

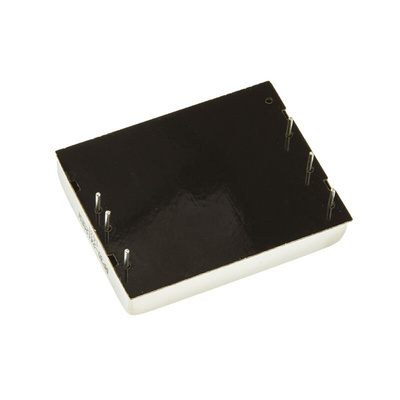

RECOM Through-Hole DC-DC Converter, 12V DC Output, 30W Power Rating - RP30-EW Series - RP30-2412SEW

Choose this DC-DC converter from RECOM to supply a regulated voltage to industrial and telecommunications equipment. It has an isolation voltage of 1.6kV DC to minimise the risk of electrical interference between its primary and secondary circuits. For added electrical safety, the device is protected against short circuits. A convenient automatic recovery function means there's no need for you to manually reset it. As the converter has nickel-plated copper housing, you can rely on it to be corrosion-resistant and highly conductive. It has a wide operating temperature range of -40°C and +85°C, making it suitable for use in harsh environments.

Features & Benefits

• Wide input voltage range of 10 to 40V DC for compatibility with low-voltage power supplies
• Self-extinguishing for safety in the event of a fire
• Remote on/off function for ease of use
• Compact dimensions of 50.8 (length) x 40.6 (width) x 10.2mm (depth) for enhanced packing efficiency on a PCB

Applications

• IT equipment
• Industrial control networks
• Pharmaceutical industry
• Military applications

How efficient is this converter?

This converter has an efficiency rating of 87%. This means it won't lose excess power during operation, helping to enhance productivity and reliability.

Approvals

UL 1950; EN60950

UL E196683
