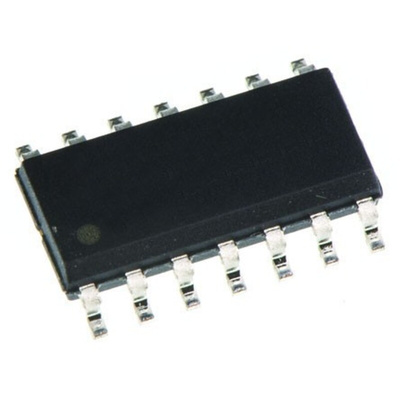

OPA4354AID Texas Instruments, Op Amp, RRIO, 100MHz, 3 V, 5 V, 14-Pin SOIC

High-Speed Operational Amplifiers, OPA Series, Texas Instruments

The Texas Instruments OPAx354 series offers high-speed, voltage-feedback CMOS operational amplifiers which are designed for video and other applications requiring wide bandwidth. These operational amplifiers are unity-gain stable and can drive large output currents. Differential gain is 0.02% and differential phase is 0.09°.Quiescent current is only 4.9 mA per channel.

Unity-Gain Bandwidth: 250 MHz
Wide Bandwidth: 100-MHz GBW
High Slew Rate: 150 V/μs
Low Noise: 6.5 nV√Hz
Rail-to-Rail I/O
High Output Current: Greater than 100 mA
Excellent Video Performance:
Differential Gain: 0.02%, Differential Phase: 0.09°
0.1-dB Gain Flatness: 40 MHz
Low Input Bias Current: 3 PA
Quiescent Current: 4.9 mA
Thermal Shutdown
Supply Range: 2.5 V to 5.5 V
