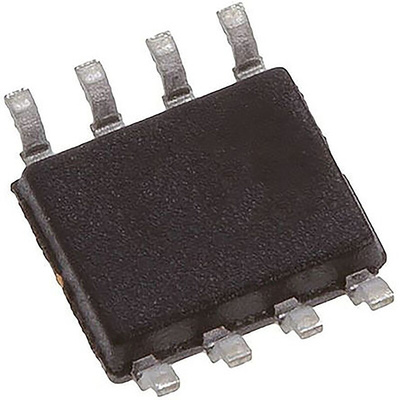

Texas Instruments SN65LVDS179D, LVDS Transceiver LVDM, LVTTL Driver, Receiver, 8-Pin SOIC, Трансивер

LVDS Transceivers, Texas Instruments

The Texas Instruments SN65LVDS179 devices are differential line drivers and receivers that use low-voltage differential signalling (LVDS) to achieve signalling rates as high as 400 Mbps. The TIA/EIA-644 standard-compliant electrical interface provides a minimum differential output voltage magnitude of 247 mV into a 100-Ω load and receipt of 100-mV signals with up to 1 V of ground potential difference between a transmitter and receiver.

Meets or Exceeds the Requirements of ANSI
TIA/EIA-644-1995 Standard
Full-Duplex Signalling Rates up to 150 Mbps
Bus-Pin ESD Exceeds 12 kV
Operates From a Single 3.3-V Supply
Low-Voltage Differential Signalling With Typical
Output Voltages of 350 mV and a 100-Ω Load
Propagation Delay Times
Driver: 1.7 ns Typical
Receiver: 3.7 ns Typical
Power Dissipation at 200 MHz
Driver: 25 mW Typical
Receiver: 60 mW Typical
LVTTL Input Levels Are 5-V Tolerant
Receiver Maintains High Input Impedance With
VCC < 1.5 V
Receiver Has Open-Circuit Fail Safe

LVDS Communication

Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.

Applications: Firewire, SATA, SCSI
