0441119, Phoenix Contact 2-Way DIN Rail Earth Modular Terminal Block, 0.2 → 4mm², 24 → 12 AWG Wire, Screw Down,, Блок заземления

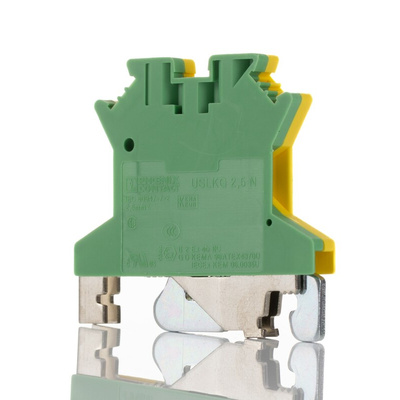

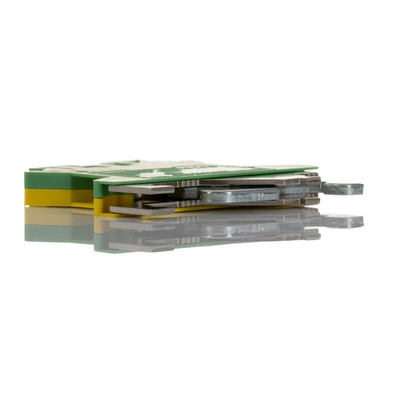

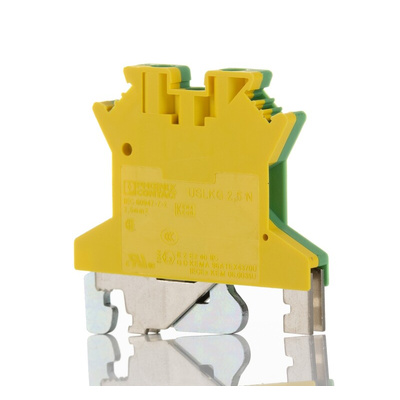

Phoenix Contact Earth Modular Terminal Block, 24A Current Rating, 8kV Rated Surge Voltage - USLKG 2.5 N - 0441119

Are stray electrical fields playing havoc with your distribution board? Grab this earth modular terminal block from Phoenix Contact. It keeps magnetic fields in check by giving them a safe path to discharge, which safeguards people and devices against electrical hazards and interference.
The unit handles voltage surges of up to 8kV to stop power spikes from damaging downstream equipment. PA insulation protects you against shocks. Its screw terminals make sure your wires stay put, to minimise the need for regular re-tightening.
Choose a grounding block like this for control centres, power stations or ships. It also meets fire safety requirements for rail vehicles. As it's colour-coded green and yellow according to international standards, you'll have no trouble identifying it as an earth terminal.

Features & Benefits

• Meets UL 94-V0 flammability standards, so will only burn for a brief period in the event of a fire
• Compatible with wire diameters ranging between 24 and 12AWG, for versatility
• Complies with IEC/EN 60079-7 requirements for electrical equipment suitable for use in explosive areas

USLK Series

Datasheet

Instruction Sheet - 441119

Line Drawing - 0441119
