0441504, Phoenix Contact 2-Way DIN Rail Earth Modular Terminal Block, 24 → 10 AWG Wire, Screw Down, Polyamide Housing,, Блок заземления

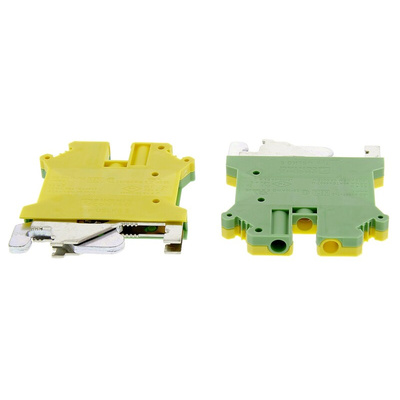

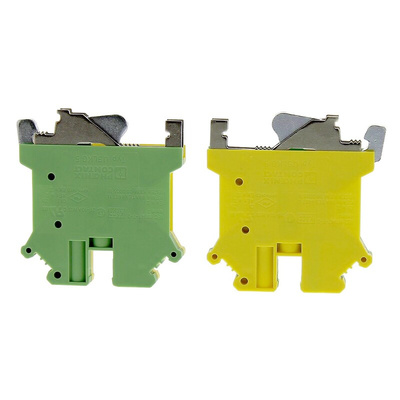

Phoenix Contact Earth Modular Terminal Block, Polyamide, 8kV Rated Surge Voltage - USLKG 5 - 0441504

Shield your industrial system from electric hazards using this earth modular terminal block from Phoenix Contact. As it comes with integrated earthing, it deflects irregular currents to the ground, protecting users and attached equipment from damage caused by electrical faults.
The unit's industry-standard green and yellow housing means you can easily identify it when setting up your wiring. This housing is made from robust polyamide, which protects against electric shock and ensures safe manual handling.
A rated surge voltage of 8kV means the block can withstand current overloads, making it suitable for use in heavy-duty systems. As it features two connections, you can also use it to set up a dual grounding system.

Features & Benefits

• ATEX-certified for use in potentially explosive environments
• Flammability rating of UL 94 V0 means burning will stop in 10 seconds if there's a fire
• Wide operating temperature range between -60°C and +105°C to withstand demanding conditions
• Minimal power dissipation of 1.02W for energy efficiency
• Compact dimensions of 6.2 (W) x 42.5 (L) x 52mm (H) to fit in small spaces

USLK Series

Datasheet 441504

Instruction Sheet - 0441504

Line Drawing - 0441504
