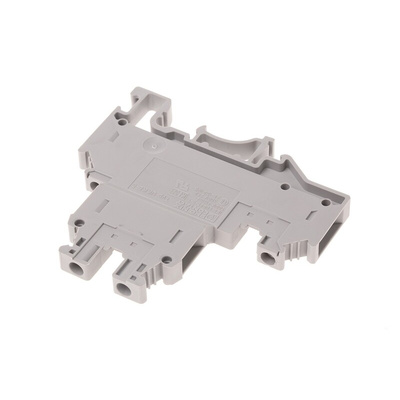

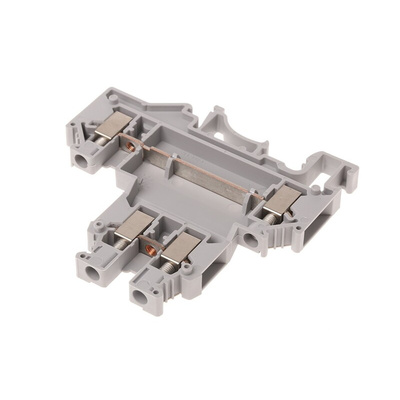

2771146, Phoenix Contact UKKB 5 Series Grey Double Level Terminal Block, 0.2 → 4mm², Double-Level, Screw Termination

Double Deck Terminals

These UKK series terminals offer a space-saving solution, by virtue of having the upper level offset laterally by half of the terminal width. Available in 2.5mm² and 4mm² versions, with a common end cover also available.

Better accessibility to the lower connection screws
Better visibility of the lower marker labels and wire entry points
Colour grey

Note

Current and Voltage ratings vary with respect to Standards and Approvals. See tech. spec. table

Approvals

UL recognised component, CSA certified

Phoenix Contact UKKB 5 Series Double Level Terminal Block, Grey, Screw Termination - 2771146

This Phoenix Contact UKKB 5 double level terminal block is a reliable solution designed for high current applications in the automation, electronics, electrical, and mechanical industries. With a current rating of 32A, this screw terminal block offers a versatile and efficient connection method for a range of applications.

Features & Benefits

• Double Level terminal block with a current rating of 32A
• Screw terminal connection method for secure and reliable connections
• Grey colour for easy identification
• 12 AWG cable support for a wide range of wire gauges
• Voltage rating of 500V for enhanced safety and performance

Applications

• Ideal for use in control panels, PLC applications, and power distribution systems
• Suitable for connecting high-current devices such as motors, actuators, and sensors

Can it support a voltage rating of 500V?

Yes, the Phoenix Contact UKKB 5 double level terminal block is rated for 500V operation.

Will it work with 12 AWG cables?

The terminal block is compatible with cables ranging from 24 to 12 AWG, providing flexibility in application.

Is the screw connection method easy to use?

Yes, the screw connection method ensures a secure and reliable connection for your wiring needs.

Can it be used for double-level terminal block applications?

Yes, the UKKB 5 series is specifically designed for double-level terminal block configurations.

Will it support a current rating of 32A reliably?

The Phoenix Contact UKKB 5 terminal block is rated for 32A, making it a suitable choice for high-current applications.
