3004171, Phoenix Contact UK6.3-HESI Series Black Fused DIN Rail Terminal, 1.5mm², Single-Level, Screw Termination, Fused

Phoenix Contact, Fused DIN Rail Terminals

The Phoenix Contact UK-5-HESI series of fuse modular terminal blocks offer excellent protection to electrical systems, protecting them against overcurrent and short-circuiting. Easily clipped onto DIN rail, the range is easily interchanged and therefore offers you greater flexibility with the part.

Features and Benefits

• Large-surface labeling

• Safety lever locked in end position

• Hinged disconnect lever

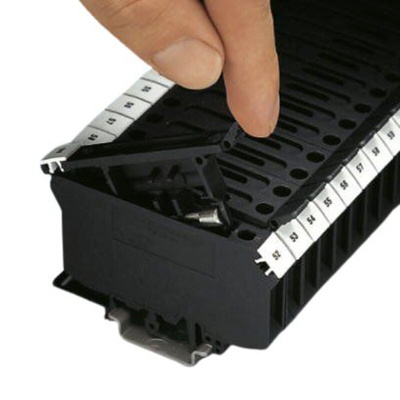

• Flip-open compartment to accommodate a fuse

• Options to accommodate 5x20mm and 6.3x32mm fuses

• Terminal width 8.2 (5x20mm), and 10.2 (6.3x32mm)

Typical Applications

• Protecting critical sensor or relay equipment

Note

Parameters in tech. spec. table are with respect to UL and CSA Approvals. With UL approval these products have a nominal rating of 10A @ 600V; with CSA approval they have a nominal rating of 25A @ 600V

Approvals

UL recognised component, CSA certified

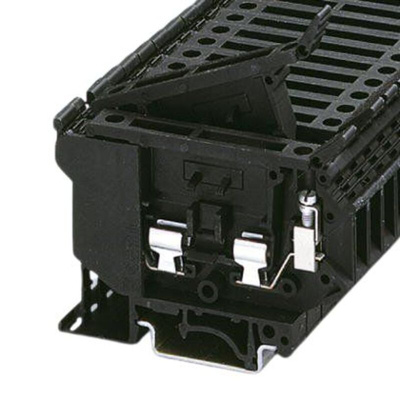

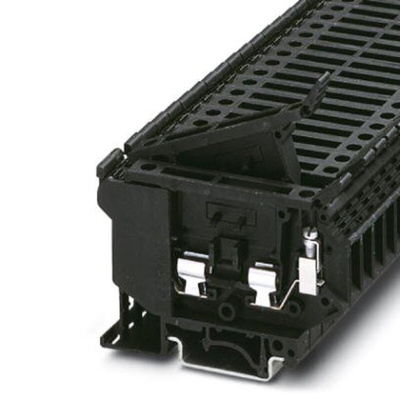

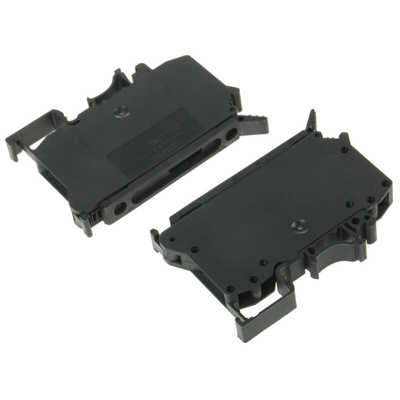

Phoenix Contact Fused Terminal Block, 6.3mm Fuse, 25A - UK 6.3-HESI - 3004171

Protect critical sensors or relays from over-current and short-circuiting with this fused terminal block from Phoenix Contact. It easily clips onto a DIN rail for quick and simple mounting in a control cabinet and has a voltage rating of 500V. Thanks to a flip-open compartment, you can install a fuse without disassembling the terminal block
The unit features a polyamide housing with high resistance to abrasion, wear and friction. This material is also an excellent insulator of electricity, so protects against power surges. A modular design makes the device compatible with other terminal blocks for easy packing of a circuit board. Excellent shock resistance keeps the component in good running order, even in extreme environments.
Use this fuse terminal block in any situation that requires a high level of electrical protection. It's commonly found in telecommunication and lighting control systems, as well as in heating and air-conditioning controls.

• Black in colour
• Glass fuse for convenient visual inspection
• Surge voltage of 6kV
• Conforms to the RoHS (Restriction of Hazardous Substances) directive, meaning it contains no more than minimal levels of hazardous substances
• Meets the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards, so it won't damage equipment via electrostatic discharge
