LSF20SCW, Prysmian CW20S LSF Steel Cable Gland Kit, M20 Thread Size, 8 → 15.8mm Cable Diameter, Комплект вводов (сальников)

Prysmian Armoured Gland Kit

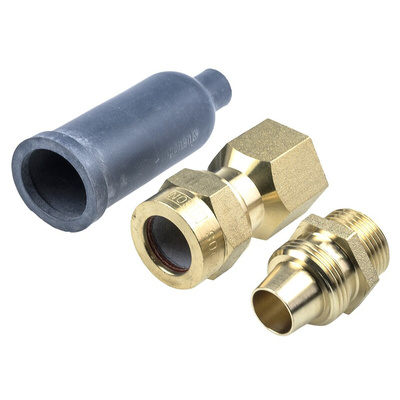

The Prysmian CW20S LSF series Armoured of cable glands and accessories in a range of high-quality tools. These glands have low smoke, zero halogen properties and are suitable for both indoor and outdoor use. They can be used in a range of weather conditions with an outer seal that grips the cable sheath. These glands provide clamping of the armour wires for electrical continuity and mechanical retention of the cable. The LSF kits include an LSF shroud, CW gland, brass locknut and a brass earth tag. It is ideal for checking electrical continuity.

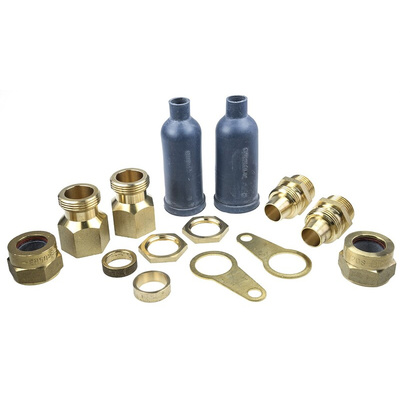

The kit includes:
Armour ring
Earth tag
Gland barrel
Gland body
Gland nut
Locknuts
Seal
Shroud
Washer

Features and Benefits

Zero halogen silicone seals and shrouds
Outer seal grips sheath of cable
Separate armour locking ring
Weatherproof and waterproof
Service temperature ranges between -20°C and 90°C
Used in most climatic conditions

Certifications

IP66 rating
EN 50262
BS6121:Pt 1:1989

CW Armoured Gland Kit Data Sheet
