423.166, Scame IP44 Yellow Panel Mount 2P + E Industrial Power Socket, Rated At 16A, 110 V, Разъем питания

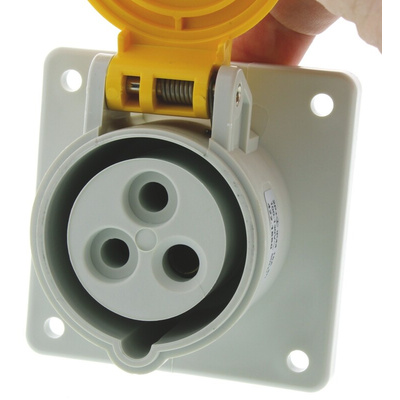

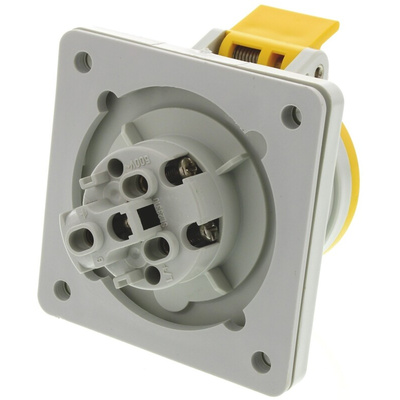

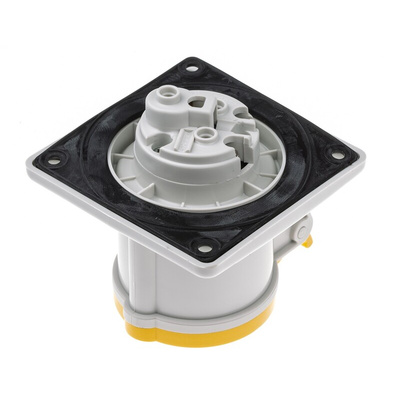

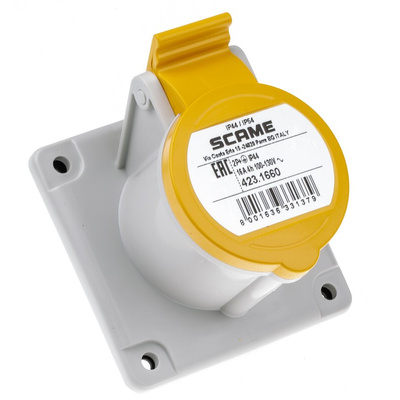

Scame IP44 Yellow Panel Mount 2P+E Industrial Power Socket, Rated At 16.0 A, 110.0 V

Looking for a splash-proof socket to install in an industrial setting? With its socket covers and sturdy mounting flange, this wall-mount socket from the Scame range will stand up to most working environments.

Colour-coded yellow to signify a conductor in the 100 – 130 voltage range, the IEC309-type 2-pin plus Earth plug is voltage rated at 110 V and current rated at 16 A. Termination is via a screw. The industrial power connector has a straight orientation for easy installation and a flange measuring 75 mm x 75 mm, enabling you to mount it to a panel, too.

The socket has been tested against European standards to ensure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007) and contains only minimal hazardous substances (RoHS).

This kind of plug is commonly used in industrial settings including warehouses and workshops.

Features and Benefits

• Industrial power connector
• Wall-mount/panel-mount socket
• Termination via screw
• Colour-coded yellow
• Voltage rating of 110 V
• Current rating of 16 A
• IP rated as IP44, so is splash-proof
• Straight body orientation
• Flange measures 75 mm x 75 mm

423.1660 Datasheet
