422.1663, Scame IP44 Blue Panel Mount 2P + E Industrial Power Socket, Rated At 16A, 230 V, Разъем питания

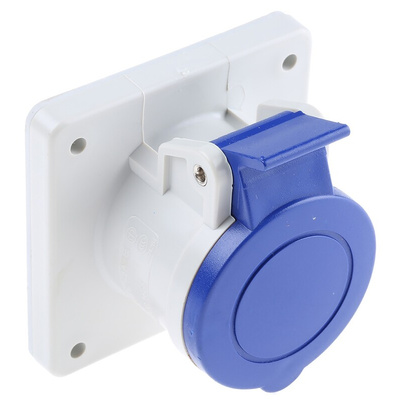

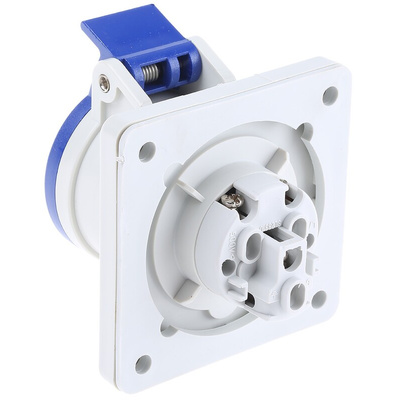

Scame IP44 Blue Panel Mount 2P+E Industrial Power Socket, Rated at 16.0 A, 230.0 V

This sturdy socket from Scame is able to withstand most industrial environments includes a tough flange for panel mounting and protective hard plastic cover. The IP44 rating assures you that it's protected from water jets from all directions.

This type of connector is typically found in workshops, warehouses and other heavy-duty commercial settings. An IEC309-type 2-pin plus earth plug, it's colour-coded blue to indicate it's a power connector in the 200-250 voltage range (this one's 230 V). It has a current rating of 16 A and can be terminated via a screw. The straight body makes it easy to install.

Part of the Scame series, this socket has been tested by engineers to ensure it meets our high standards for quality and safety. It's ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 certified, which means it won't harm equipment through electrostatic damage, and is also RoHS-compliant for hazardous substances.

Features and Benefits

• Industrial power connector
• Panel mounting
• 2-pin plus earth female socket outlet
• Termination via screw
• Colour-coded as blue
• Voltage rating of 230 V
• Current rating of 16 A
• IP rated as IP44 (splash-proof)
• Straight body orientation
• Includes sturdy plastic socket cover and mounting flange
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS-compliant as containing minimal hazardous substances

423.1663 Datasheet
