2433000, Rittal Stainless Steel Wall Bracket for Use with AE Series, BG Series, CM Series, EB Series, EL Series, KL Series

Rittal AE Compact Enclosures

The AE series from Rittal is a compact stainless steel enclosure with an all-round foamed-in PU seal offering IP66 protection to IEC 60 529.

Protection category: IP66 to IEC 60 529, NEMA 4X and IK08
Stainless steel 1.4301 (AISI 304) enclosure and door
Door opening angle approx. 130°

Enclosure Canopy - available separately

Stock no. 457-1067 is for enclosure size W 300 x D 210 mm
Stock no. 457-1073 is for enclosure size W 500 x D 210 mm
Stock no. 457-1023 is for enclosure size W 200 x D 155 mm
Stock no. 457-1045 is for enclosure size W 380 x D 210 mm

Black Plastic Handles - available separately

Stock no. 457-1095 is a handle with lock cylinder insert, lock no. 3524 E (cannot be used with stock no. 784-6171)
Stock no. 860-4506 is a handle and casing, without lock cylinder insert
Stock no. 860-4524 is a handle and casing, with lock cylinder insert, lock no. 3524 E

Approvals

UL, CUL, TUV, CSA and Lloyds Register of Shipping.

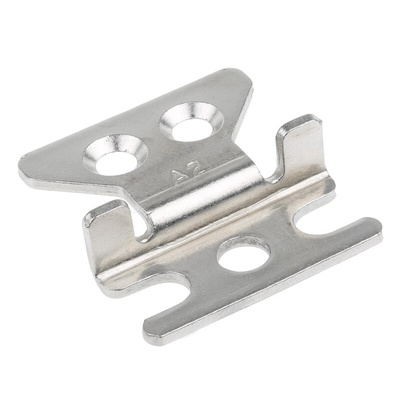

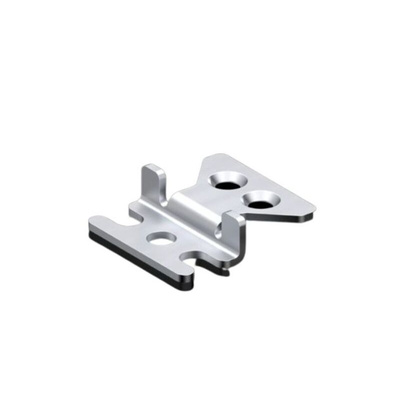

Rittal Wall Bracket, 54mm Length, Stainless Steel - 2433000

Use this wall bracket from Rittal to firmly mount your steel enclosures to the wall. It's made of sturdy, corrosion-resistant stainless steel, so it won't decay due to rust. The unit is also impact-resistant, so there's no need to worry about it breaking or deforming under pressure. As it's a general-purpose component, it's suitable for a wide range of enclosures and is compatible with Rittal's AE, BG, CM, EL and KL series. This makes it simple to assemble and install a complete set-up.

Features & Benefits

• Supplied with all parts required for assembly for quick and easy mounting
• IP66 (ingress protection) rating means it withstands dust and high-pressure water jets

Applications

• Office equipment
• Food production facilities
• Microbiology laboratories

How do I install this wall bracket?

Installing this component is easy. First, mark out the spot on the wall where you want to install it. Then, using a drill, bore a hole into the wall. Insert an anchor plug into the hole to keep the screw firmly in place and help support the weight of the enclosure. Finally, place the bracket on the wall and secure it into the wall anchor with a screw.

AE Series Stainless Steel Compact Enclosures Data Sheet

Rittal Wall Mounting Brackets Datasheet

Line Drawing - 2433000
