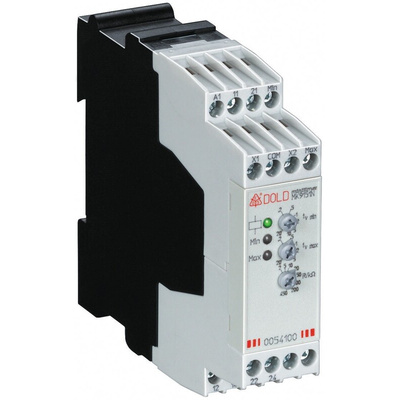

MK9151N.12 2-450kOHM AC230V 0-20s, Dold Liquid Level Relay - DIN Rail Mount, 230 V ac 1, Контроллер уровня

MK 9151N - level relay

Application

Level monitoring and control of conductive liquids and powders, e.g. maximum and minimum fill level, protection against overfilling and dry running
Monitoring and control of the mix ratio for conductive liquids
General resistance monitoring tasks, e.g. recording temperature limits with PTC
Contact protection relay with delay

Features

3 electrode connections for 2-point and 1-point level control
Measuring circuit for electrodes works on AC voltage generated internally in the device (approx. 30 Hz); therefore no electrolysis occurrence in the fluid
The measuring circuit galvanically isolated from the mains is immune from high levels of interference
Max. lead length to the electrodes: 3000 m
Wide setting range: 2 kΩ → 450 kΩ which enables differentiation between liquid and foam
Response and fallback delay: 0.2 s → 20 s, adjustable separately for MIN and MAX level
Programmable for operating or rest current principle
LEDs to indicate operational readiness and contact position
Output contact 2 changeovers
Overall width: 22.5 mm

Standards

IEC/EN 60 255, DIN VDE 0435-303

Approvals

CE

Liquid Level Relays are used to monitor the levels of conductive liquids, and are available in Up/Down, Minimum, Maximum, and Fill/Empty variations. Liquid Level Relays are straightforward to install and safe to use.

Application Examples

Liquid Level Relays (Conductive Level Sensors) are used in a wide variety of applications including waste water management and the monitoring and management of corrosive liquid media, and designed specifically to provide for the:

Monitoring and control of liquid levels
Protection of pumps against dry running
Ability to detect liquid leaks in a system
Control of media mixing ratios
Control of liquid levels
