Aim-TTi TG330 Function Generator, 0.03Hz Min, 3MHz Max, Variable Sweep, Генератор функций

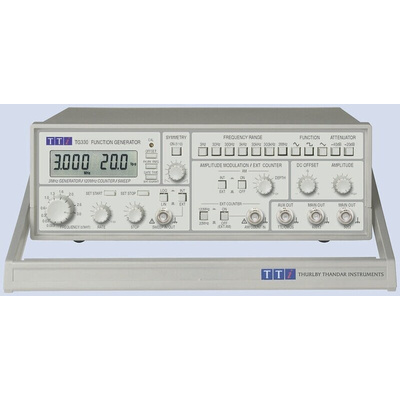

Aim-TTi TG330 3MHz Function Generator with Counter Sweep and AM

The TG330 has the same features and specifications as the TG320, but with the addition of an internal sweep generator and an AM capability.

Function generator specifications as TG315
Frequency counter specifications as TG320
Internal sweep generator with lin or log sweep
Amplitude modulation, internal or external source

Aim-TTi Digital Function Generator

The Aim-TTi digital function generator is a low-cost module that operates in the range of 5MHz to 120MHz. It also incorporates an LCD display that gives a simultaneous readout of both frequency and amplitude (or dc offset). The function generator includes the dual digital display of frequency and amplitude, along with the basic generator functions of sine, square and triangle waveforms, variable DC offset, variable symmetry, as well as, an external sweep input. A wide frequency range is matched by very high waveform quality at all frequencies and amplitudes. The digital display provides fast update even at low frequencies.

Features and Benefits

Simultaneous digital display of frequency and level
High accuracy frequency readout with fast update
2mV to 20V(peak to peak) output from 50Ohms or 600Ohms
7-digit resolution
Auxiliary TTL/CMOS output
Level display compensated for attenuator setting
Frequency change of 1000:1 by vernier or external sweep input
Variable symmetry at constant frequency
Display annunciators including clipping indicator
Variable DC offset with zero detent

Applications

Integrated electronic testing
Educational institutes
Embedded systems
Digital circuits
Analogue signal processing
Laboratories
