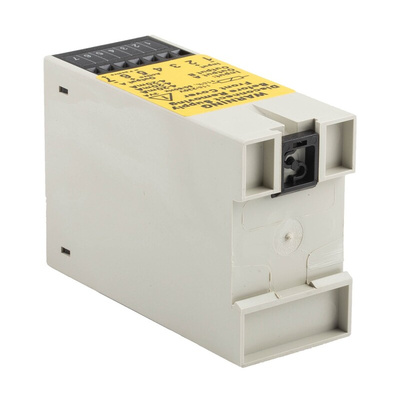

RS PRO Signal Conditioner, Current Input, Current Output, 115V ac Supply

RS PRO Analogue Output, Signal Conditioner

Use this analogue-output signal conditioner to split a single current input into two independent isolated output signals. The analogue-to-analogue converter supports DC inputs ranging from 4 mA to 20 mA and is suitable for applications needing local operation as well as remote monitoring and control. Three-way (input/output/supply) isolation means there's no compromise on accuracy due to noise, crosstalk or unwanted ground loop currents.

Part of the trusted RS PRO family of products, the conditioner is stringently tested for quality. It can handle operating temperatures of 0°C to +45°C. Robust in its construction and designed for easy on-site installation, this signal conditioner is DIN rail mountable and comes with screw-type terminals.

Thanks to excellent reliability and durability, BD320 signal converters such as this are widely used for military and industrial process-monitoring and maintenance.

Features and Benefits

• Converts single current input to two independently isolated current outputs
• Input current range of 4 mA to 20 mA
• User-selectable supply voltage of 115 V AC or 230 V AC
• Compatible with RTD and thermocouple sensors
• Red LED 'power on' indicator
• DIN rail mounting
• Screw-type termination for easy installation
• Maintains full three-way isolation
