TRACOPOWER Switching Power Supply, TXL 035-0512D, 5 V dc, 12 V dc, 2.5A, 35W, Dual Output, 85 → 264V ac Input, Источник питания

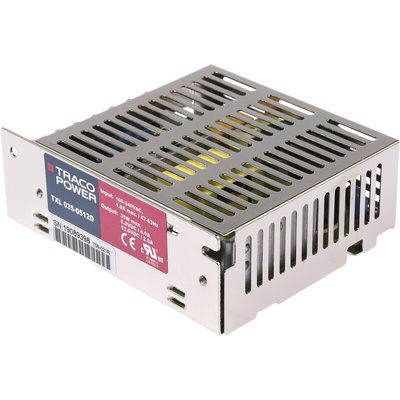

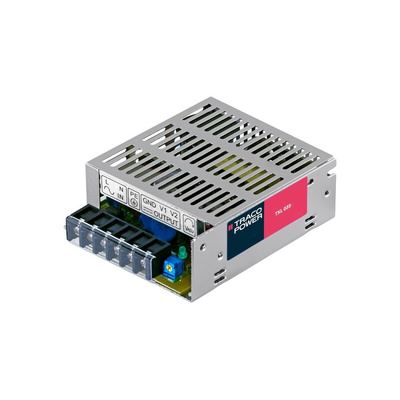

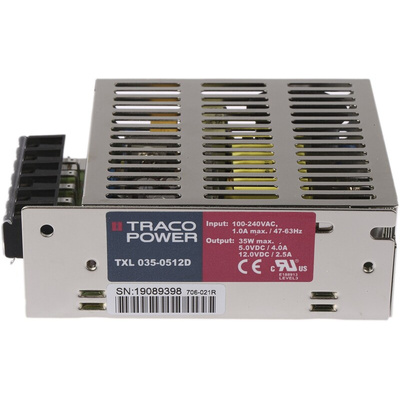

Traco Power Switching Power Supply, Enclosed Package, 79% Efficiency - TXL Series - TXL 035-0512D

Need to energise two circuits in one system, but with different voltage levels? This switching power supply from Traco Power does the trick. It takes inputs between 85 and 264V AC and steps them down to dual outputs of 5 and 12V DC. A speedy 1s start-up time means it gets your operations up and running in a jiffy. As the device delivers a typical efficiency of 79%, it keeps waste energy to a minimum.

Features & Benefits

• Compact dimensions of 99 (L) x 82 (W) x 35mm (D) to slot easily into busy systems
• Labelled inputs and outputs make it easy to identify connections
• Comes with short-circuit and overvoltage protection, minimising the risk of damage from power faults

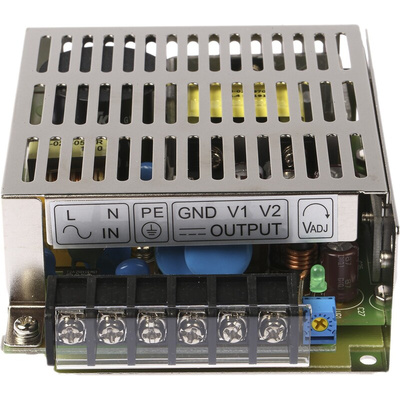

• Features screw terminals for straightforward wiring

Applications

• Portable devices
• Data centres
• Automotive industry
• Manufacturing facilities

How do I mount this component?

Getting it set up is speedy, as you just fix the power supply directly to a machine's chassis.

How heavy is this switching power supply?

It's lightweight at just 350g, so it doesn't put excessive strain on the mounting surface.

TXL 035_050_060 CB Series Test Certificate

TXL UL Certificate of Compliance

TXL 035-0512D Datasheet

Industrial Power Solutions Catalogue

Selection Guide

Instruction Sheet - TXL 035 Series

Application Note - TXL Series
