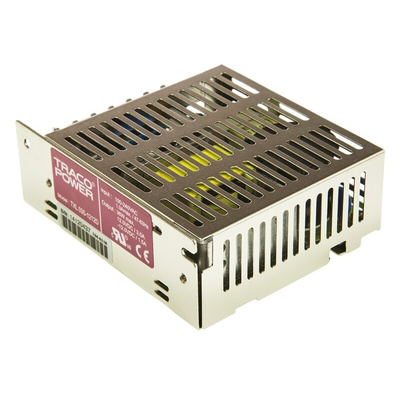

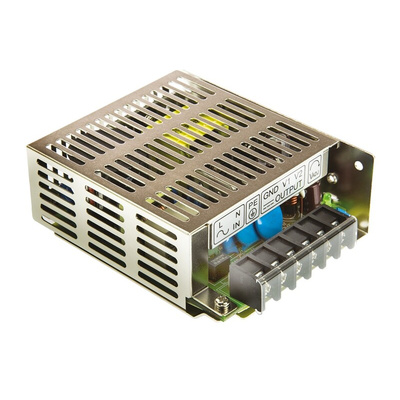

TRACOPOWER Switching Power Supply, TXL 035-1212D, ±12V dc, 1.5A, 35W, Dual Output, 85 → 264V ac Input Voltage, Источник питания

Traco Power Switching Power Supply, 36W Maximum Power, Dual Outputs - TXL 035 Series - TXL 035-1212D

Got a mismatch between your input and output? Choose this handy switching power supply from Traco Power to power DC circuits from an AC source. It takes 88 to 264V AC and delivers twin 12 V DC outputs to keep your kit running smoothly. A high efficiency rating of 83% means this is an energy-saving component that runs cool. Thanks to a wide operating temperature range between -20°C and +70°C, it's an ideal option for use in harsh conditions.

Features & Benefits

• Broad operating humidity range between 20 and 90% RH for use in areas with high levels of non-condensing water vapour
• Accepts DC inputs between 125 and 375V to give you greater functionality
• Mean time between failures is greater than 340,000 hours, which means it's highly reliable
• Protection from short circuits and overvoltage keeps systems running smoothly
• Low weight of 350g, so won't put strain on your setup

Applications

• CCTV cameras
• Mobile phone chargers
• Domestic appliances
• Laptops

What current does this unit deliver?

The +12V output delivers 3A, while the -12V output delivers 1.5A, which means this unit is highly versatile.

TXL 035_050_060 CB Series Test Certificate

TXL UL Certificate of Compliance

TXL 035-1212D Datasheet

Industrial Power Solutions Catalogue

Selection Guide

Instruction Sheet - TXL 035 Series
