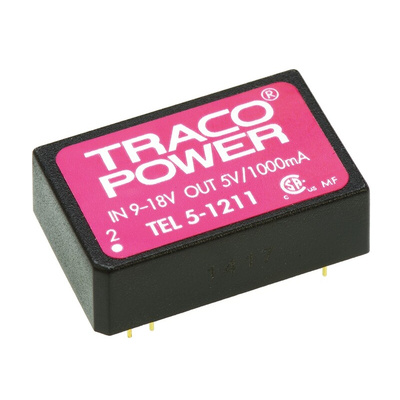

TEL 5-1211, TRACOPOWER TEL 5 DC-DC Converter, 5V dc/ 1A Output, 9 → 18 V dc Input, 5W, Through Hole, +85°C Max Temp -40°C, Преобразователь

Traco Power DC-DC Converter, Isolated, 6800 μF Capacitive Load - TEL 5 Series - TEL 5-1211

Need to scale down your voltage while scaling up your productivity? This DC-DC converter from Traco Power does the trick. It converts input voltages between 9 and 18V DC to the stable 5V DC output your equipment needs to run efficiently. A maximum start-up time of 37ms limits downtime, ensuring your system hits the ground running. This unit performs effectively in temperatures between -40°C and +85°C, so it's safe to use in extreme conditions. You can mount it securely in a snap onto a printed circuit board using the through-holes.

Features & Benefits

• Non-conductive plastic housing resists wear and tear, enhancing durability
• Streamlined dimensions of 31.8 (L) x 20.3 (W) x 10.2mm (D) to make good use of space in your setup
• Mean time between failures of a million hours means it's built to last
• Light weight of 16.9g for easy handling during assembly
• Continuous short-circuit protection reduces the risk of equipment damage

Applications

• Consumer electronics
• Renewable energy systems
• Radar equipment

How efficient is this DC-DC converter?

It has an efficiency rating of 81%, so you can be sure minimal energy is wasted as heat during the conversion process.
