22-HIM-C2S, Allen Bradley 22-HIM Series Remote Interface for Use with PowerFlex 4, PowerFlex 4M, PowerFlex 40, PowerFlex 40P,

Remote Operator Keypads, 4 & 40 Series

Two versatile LCD operator interface keypad available in hand held and IP66 panel mount.
An IP20 panel bezel kit is also available to mount the hand held version.

Easy to read displays
SMART Start - makes programming easy
CopyCat functionality - store parameter sets in the keypad
All cables included

Allen Bradley Remote Interface For Use With PowerFlex Series, IP66 - 22-HIM-C2S

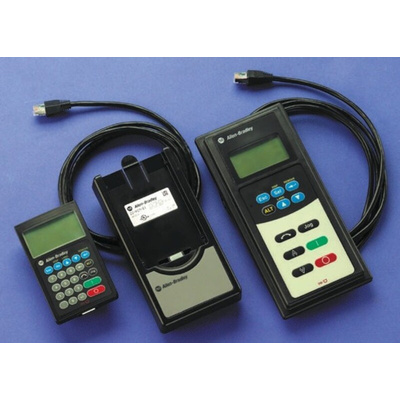

Use this remote interface device from Rockwell Automation's Allen Bradley range to control drives in the PowerFlex series. This human interface module (HIM) kit consists of two keypads that allow the operator to interact with variable frequency drives either from close range or from a distance. One of them is portable enough to be carried around and the other is panel mounted to the drive. It features a practical CopyCat functionality that allows you to store parameters in the keypad for future reference.

• Liquid crystal display (LCD) screen for a clear view of parameters • Supplied with all cables needed for quick and easy connection to computers and programmable circuits (PLC)• IP66 (ingress protection) rated to withstand dust and powerful water jets• Bezel kit for safe housing of handheld keypad

Standards and Certifications

• UL (Underwriters' Laboratory)• IEC (International Electrotechnical Commission)• RoHS (Restriction of Hazardous Substances)

What operations can I perform with this remote interface?

You can use this remote interface kit to set the speed of a drive from the PowerFlex series. You can also use it to manually jog the motor during maintenance or repairs.
