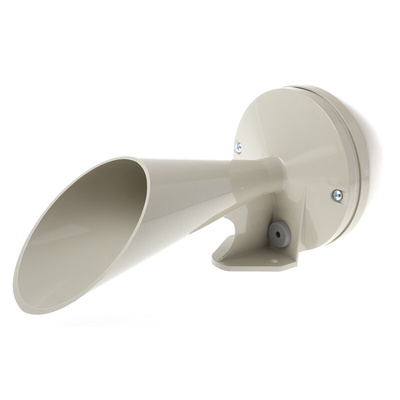

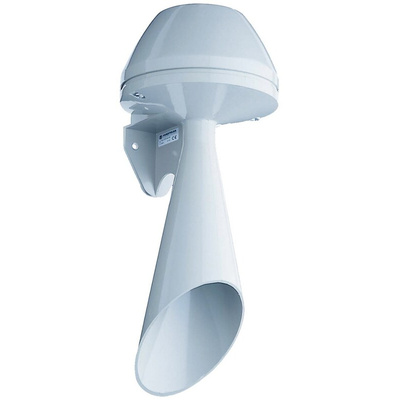

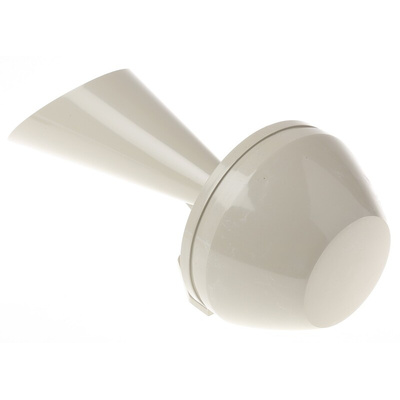

570.100.68, Werma Bracket Mount Horn, 230 V ac, 105dB at 1 m, IP55, AC

Pulsed Tone Signal Horn 570

Large trumpet horn with pulsating tone
Internal or external use

Note

Sound outlet must face downwards.

WERMA Signal Horn Buzzer, 230V AC, 108dB - 570.100.68

Improve safety in your workplace with this signal horn buzzer from WERMA. It emits a loud pulse tone to quickly notify staff of an emergency. This unit has a maximum sound output of 108dB, so you can easily hear it over noisy machinery. Its polycarbonate body is resistant to impact, making it suitable for use in demanding conditions. You can mount this buzzer directly onto a wall via the screw holes on the bracket. Convenient through-holes on its body also allow for hassle-free cable connection.

Features & Benefits

• Acoustic service life of at least 250 hours for long-lasting use
• Screw terminals for a secure electrical connection
• IP55 (ingress protection) rating means it's protected against limited amounts of dust and can withstand low-pressure water jets
• Broad operating temperature range between -20°C and +60°C for use in harsh environments

Applications

• Manufacturing industry
• Mining and quarrying industry
• Medical centres
• Commercial buildings

How do I maintain this buzzer?

You can maintain this buzzer by regularly cleaning its external body with a light, non-scouring cleaning agent. It's advisable not to use harsh cleaning materials like solvents to prevent damage to the buzzer.
