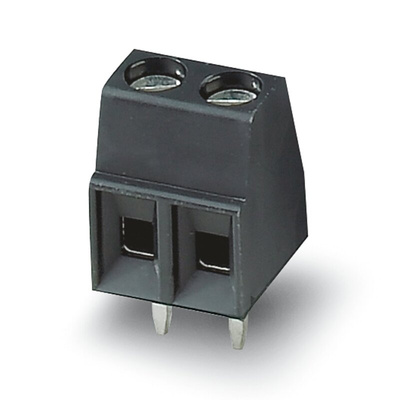

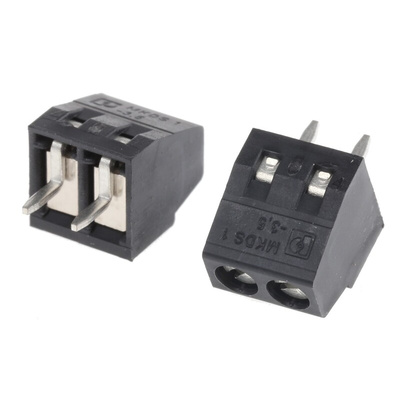

1985807, Phoenix Contact MKDS 1/ 2-3.5 HT BK Series PCB Terminal Block, 2-Contact, 3.5mm Pitch, Through Hole Mount, 1-Row,

Phoenix Contact PCB Header, 13.5A Current Rating, 26 to 16AWG - MKDS 1/ 2-3,5 HT BK - 1985807

Secure wires to your board in a flash using this PCB header from Phoenix Contact. It has two positions, so you can easily set up a pair of connections in your system. The tin-plated copper alloy contacts are corrosion-resistant and have high electrical conductivity to help ensure steady current flow to your circuits. Thanks to its current rating of 13.5A, this unit is up to the task of supporting high-power electrical applications.
The header accommodates wires that range in size from 26 to 16AWG, so it comes in handy for a wide variety of wiring setups. A compact pitch size of 3.5mm and overall dimensions of 7.3 (L) x 7.5 (W) x 12mm (H) mean this small but mighty unit fits easily onto a crowded board. Its PA body offers insulation for protection against electric shock, so you're in safe hands during installation and maintenance.

• UL 94-V0 flammability rating indicates that burning stops in 10 seconds or less for safety in the event of a fire
• Rated surge voltage of 2.5kV for protection against powerful voltage spikes
• Screw connection has a tension sleeve to achieve a secure hold on cables

Datasheet

Line Drawing - 1985807
