1985823, Phoenix Contact MKDS 1/ 2-3.81 HT BK Series PCB Terminal Block, 2-Contact, 3.81mm Pitch, Through Hole Mount, 1-Row,

Phoenix Contact COMBICON MKDS 3.81mm High Temperature PCB Terminal Block

COMBICON MKD S PCB terminal blocks are reflow solder tolerable and enable a greater proportion of a PCB to be populated and reflow soldered in one operation. Before being used in reflow oven, it is recommended that these components are heat treated at +125°C for 48 hrs prior to use.

Features and Benefits

• Rated at 200 V / 12 A
• Removes the necessity for costly subsequent soldering operations
• The through hole fixing offers high mechanical stability
• For wire size range 26-16 AWG
• Maximum flexible wire csa 1.0 mm², solid wire 1.5 mm²

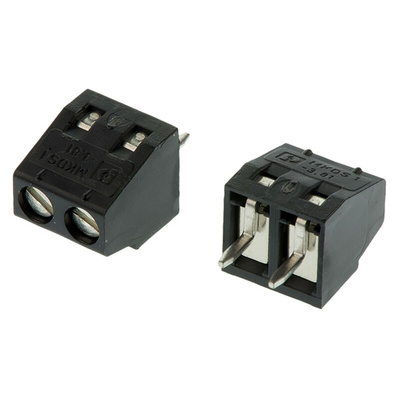

Phoenix Contact Screw Terminal Block, 2 Way, 3.81 mm Pitch - MKDS 1/ 2-3.81 HT BK - 1985823

This screw terminal unit is part of the Phoenix Contact range of terminal blocks for PCBs (printed circuit boards). It provides a reliable and durable connection for electrical contacts. Advanced locking technology is on hand to keep cables secure and protect wires from accidental damage.
A high temperature tolerance means this unit can be attached to a PCB using reflow soldering. This technology allows multiple components to be fitted to a circuit board simultaneously. Reflow soldering, in conjunction with this unit's through-hole mounting, delivers high levels of mechanical stability and stable connections.
This component is compatible with a variety of flexible wire sizes. It can be used in a wide range of PCB applications, from machine building and systems manufacturing to energy technology. The Phoenix Contact range of terminal blocks offers long-lasting, rugged solutions that exceed industry-standard requirements for electrical and mechanical properties.

• Current rating of 13.5 A
• Voltage rating of 300 V
• Made from black nylon
• Maximum operating temperature of +245°C
• 2 contacts
• Single row
• Pitch of 3.81 mm
• Wire size of 30 to 16 AWG (American Wire Gauge)
