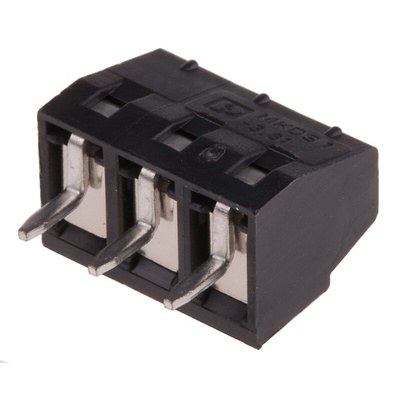

1985836, Phoenix Contact MKDS 1/3-3.81 HT BK Series PCB Terminal Block, 3.81mm Pitch, Through Hole Mount, Solder Termination

Phoenix Contact COMBICON MKDS 3.81mm High Temperature PCB Terminal Block

COMBICON MKD S PCB terminal blocks are reflow solder tolerable and enable a greater proportion of a PCB to be populated and reflow soldered in one operation. Before being used in reflow oven, it is recommended that these components are heat treated at +125°C for 48 hrs prior to use.

Features and Benefits

• Rated at 200 V / 12 A
• Removes the necessity for costly subsequent soldering operations
• The through hole fixing offers high mechanical stability
• For wire size range 26-16 AWG
• Maximum flexible wire csa 1.0 mm², solid wire 1.5 mm²
