78639646 M22-PVT+M22-A+M22-XAK1, Eaton RMQ Titan M22 Series Turn to Release Emergency Stop Push Button, 22mm Cutout, IP69K

Eaton RMQ Titan Emergency Stop Push Button, 38mm Diameter, IP67 and IP69K Ratings - RMQ-Titan / M22 Series - 78639646 M22-PVT+M22-A+M22-XAK1

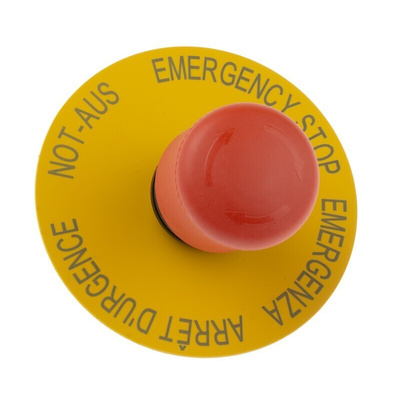

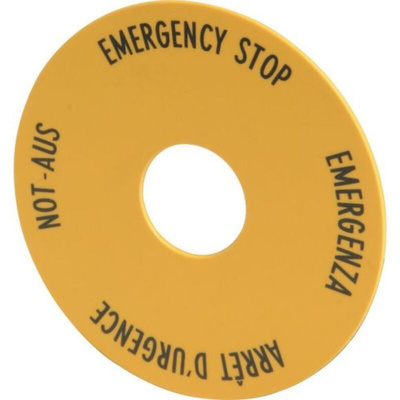

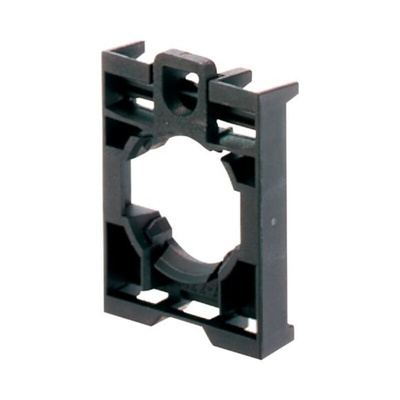

Halt dangerous operations in their tracks with this mushroom-shaped emergency stop push button from Eaton. By simply pressing the switch once, you can immediately cut power to hazardous equipment, which boosts workplace safety. The complete unit includes a collar and mounting bracket, so you don't have to source additional parts. Clear labelling on the rim informs workers the component is for emergency use only. The red and yellow colouring is eye-catching and easy to spot when quick action is needed on factory machinery and medical equipment.

Features & Benefits

• 22mm cutout diameter for wide compatibility with standard panels
• IP67 and IP69K ratings indicate a complete dust-tight and waterproof unit that handles high-pressure water sprays
• Broad operating temperature range of -25°C to +70°C for use in harsh settings

How do I release the emergency stop push button after actuation?

A turn-to-release function is on hand to deactivate the emergency stop. This is an added safety measure that ensures equipment stays off the all-clear is given.

Can this push button cope with shocks and vibrations in heavy-duty environments?

Yes, it's designed to handle impact, which cuts out the risk of accidental disconnection or activation.

Part of the Eaton E-Stop family

Note

Eaton formerly known as Moeller

M22-PVT Data Sheet

M22-A Datasheet

Eaton M22-XAK1 Label Datasheet

Instruction Sheet - 78639646 M22-PVT+M22-A+M22-XAK1

Catalogue - Control, Signal and Detect Positions
