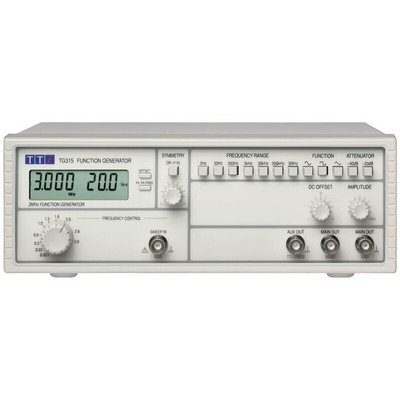

Aim-TTi TG310 & TG315 3MHz Function Generator with Dual Digital Displays

The TG315 is a low-cost 3MHz function generator which incorporates an LCD display that gives a simultaneous readout of frequency and amplitude (or dc offset). Wide frequency range is matched by very high waveform quality at all frequencies and amplitudes. The digital display provides fast update even at low frequencies. The TG310 is a simplified version of the TG315, having a calibrated frequency dial and no LCD display.

Simultaneous digital display of frequency and level
High accuracy frequency readout with fast update
2mV to 20V pk-pk output from 50Ω or 600Ω
Level display compensated for attenuator setting
1000:1 frequency change by vernier or external sweep input
Variable symmetry at constant frequency
Display annunciators including clipping indicator

Aim-TTi Digital Function Generator

The Aim-TTi 3MHz digital function generator is a low-cost function generator. It incorporates an LCD display that gives a simultaneous readout of both frequency and amplitude (or DC offset). The function generator includes the dual digital display of frequency and amplitude, along with the basic generator functions of sine, square, and triangle waveforms, variable DC offset, variable symmetry, and an external sweep input. A wide frequency range is matched by very high waveform quality at all frequencies and amplitudes. The digital display provides fast update even at low frequencies.

Features and Benefits

Simultaneous digital display of frequency and level
High accuracy frequency readout with fast update
2mV to 20V(peak to peak) output from 50Ohms or 600Ohms
Auxiliary TTL/CMOS output
Level display compensated for attenuator setting
Frequency change of 1000:1 by vernier or external sweep input
Variable symmetry at constant frequency
Display annunciators including clipping indicator
Variable DC offset with zero detent

Applications

Integrated electronic testing
Educational institutes
Embedded systems
Digital circuits
Analogue signal processing
Laboratories

Certifications

EN61010-1
EN61326
