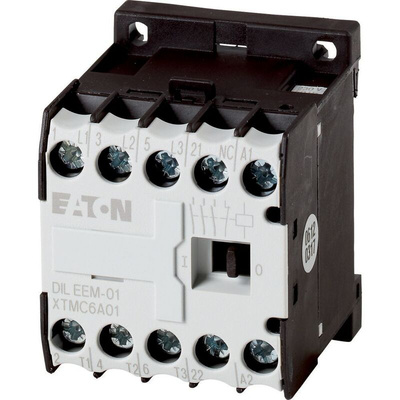

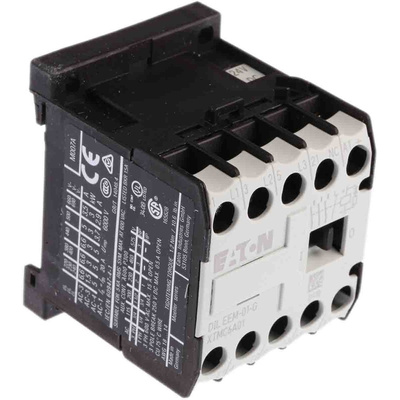

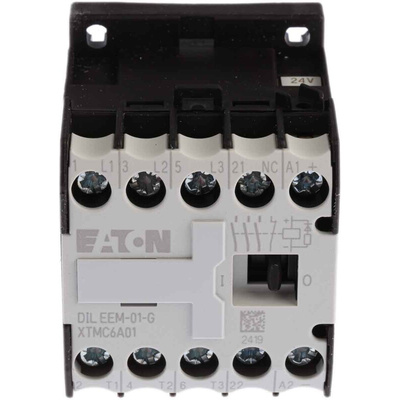

051650 & DILEEM-01-G(24VDC), Eaton xStart DILEEM 1 Pole Contactor - 6.6 A, 24 V dc Coil, 3NO, 3 kW, Контактор

4679313
Номер производителя: 051650 & DILEEM-01-G(24VDC)Производитель: Eaton
Цена за шт.
14358.00 руб. (С НДС) *
Количество 5+
Цена 13776.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Eaton Contactors - DILEM & DILEEM Series

Eaton's range of DILEM & DILEEM contactors are predominantly used in larger-scale operations, they are designed to provide a long mechanical and electrical life which in turn accomplishes reliability. Users will commonly find these contactors integrated within industrial buildings and factory installations, enabling automated processes of motors and resistive loads

Features & Benefits

Easier engineering through identical construction sizes for AC- and DC-operated contactors
Energy savings and higher packing density in control panel due to minimized heat dissipation
High wiring security through doubled box terminals
Less coupler relays: direct actuation from the PLC for contactors up to 32 A
Easy engineering through integrated suppressor circuits for DC
Wide operating temperature
Surface or DIN rail mounting
Ingress Protection Rating of IP20 on the contacts protecting against solid objects up to 12mm, - has no protection against water

How contactors operate?

If you have asked yourself this question, rest assured you are not the only person that has wondered how contactors work. If you've wondered how do contactors differ from a relay? The following answer will also explain that. A contactor is essentially a relay, it holds very similar functions, but it is typically used in larger-scale applications. In most cases, a contactor is a switch that can be controlled remotely, specifically designed to switch a large amount of electrical power through its contacts.

DILEEM-01-G(24VDC)

1 Pole + 3N/0
Screw terminals
DC operation
Climatic proofing: Damp heat, constant, to IEC 60068-2-78
& Damp heat, cyclic, to IEC 60068-2-30
Ingress Protection of IP20

Техническая спецификация
pdfDILEEM Range Specifications
pdfDILEEM-01-G(24VDC) Datasheet
Глубина:
45мм
Диапазон:
xStart
Длина:
58мм
Катушка напряжение:
24 В пост. тока
Количество вспомогательных контактов:
1
Количество полюсов:
1
Мощность номинальная:
3 кВт
Номинальное напряжение контакта:
690 В перем. тока
Номинальный ток контакта:
6.6 A
Нормальное состояние конфигурации:
3NO
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-20°C
Серия:
DILEEM
Тип клеммы:
Винт
Ширина:
52мм
