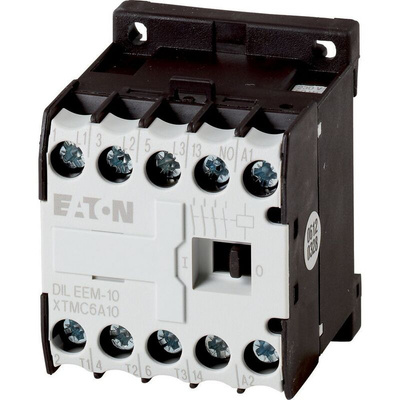

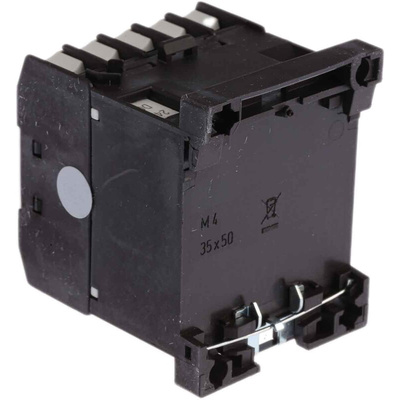

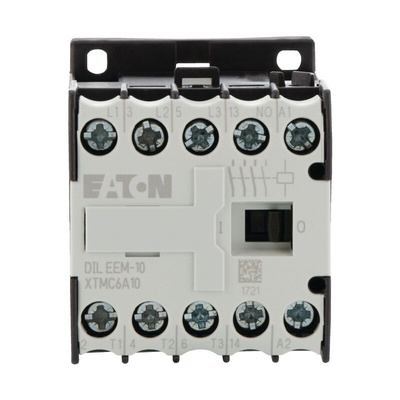

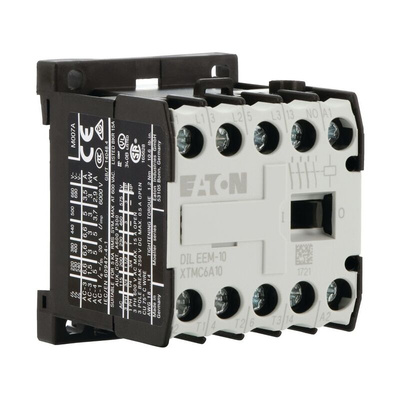

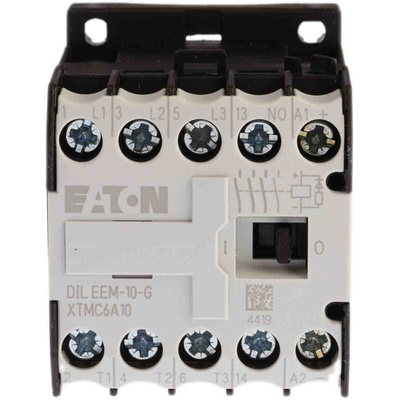

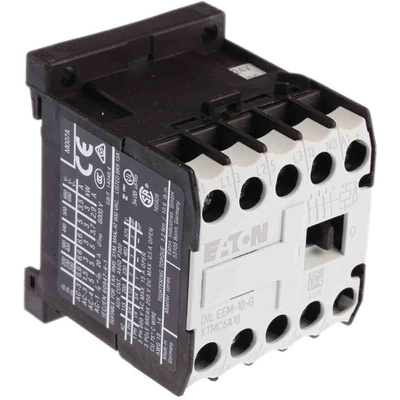

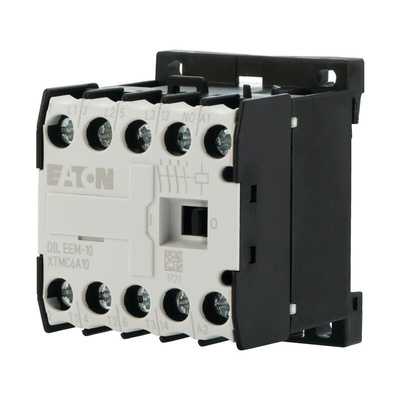

051643 DILEEM-10-G(24VDC), Eaton Contactor, 24 V dc Coil, 3-Pole, 6.6 A, 3 kW, 3NO, 690 V ac, Контактор

Eaton Contactor, DC-Operated, 10g Mechanical Shock Resistance - DILEEM Series - 051643 DILEEM-10-G(24VDC)

For a reliable switching solution in your electric circuit, opt for this contactor from Eaton. When current passes through the internal coil, it generates a magnetic field that opens or closes the contacts to turn the circuit on or off. As it handles 9000 operations per hour, it's a suitable option for fast-paced switching in busy setups such as manufacturing lines and packaging equipment. As it delivers resistance to mechanical shock of up to 10g, this is a durable choice for demanding working conditions

Features & Benefits

• Minimal heat dissipation per pole of 0.2W for energy efficiency
• Lasting performance in harsh conditions thanks to an operating temperature range of -25°C to +50°C
• Robust screw terminals achieve a secure hold on conductors
• IP20 rating indicates that it's protected against solid objects up to 12mm

How durable is this contactor?

Thanks to a mechanical service life of 20 million cycles, you can safely trust this contactor for long-term service without failure.

What protective features does this contactor have?

For user safety, it's finger-proof and back-of-hand-proof when you operate it from the front, which keeps you safe from shocks during installation and maintenance.

Note

Eaton formerly known as Moeller
