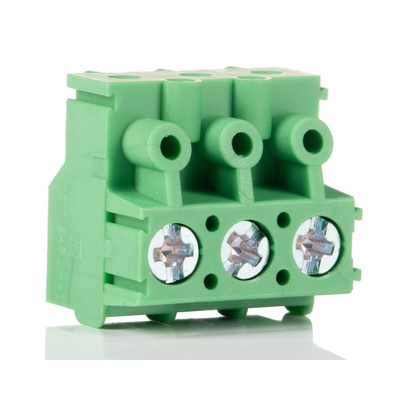

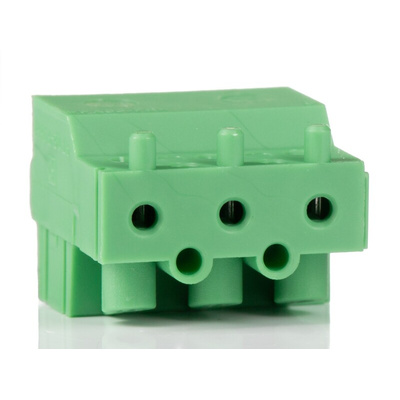

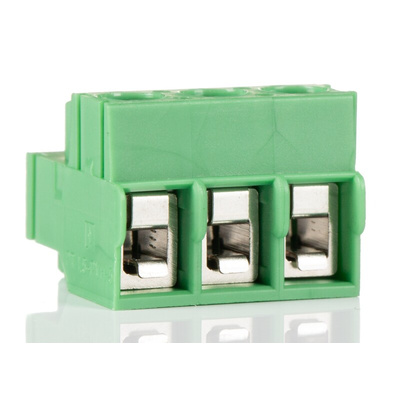

1934874, Phoenix Contact 5mm Pitch 3 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

Phoenix Contact PCB Header, Female, 3 Connections - PT 1,5/ 3-PVH-5,0 - 1934874

Directly connect wires to your circuit board using this PCB header from Phoenix Contact. It's a versatile option with three contacts, so you can attach multiple wires to it. For stable signal transmission, the contact is made from highly-conductive copper alloy with a corrosion-resistant tin contact plating for durability. Thanks to a current rating of 12A, you can use this unit in your high-powered electrical systems.
For flexibility in your board setup, this header can be mounted in either a horizontal or vertical position. Its tough polyamide body delivers insulation protection to help prevent overheating and shield you from electric shocks for safe manual handling. As this component has an ambient operating temperature range between -40°C and +100°C, it withstands the harsh industrial environments found in the automotive industry as well as in sensor and safety systems.

Features & Benefits

• Flammability rating of UL94 V0 indicates the unit inhibits the spread of fire
• Can accommodate wires ranging from 24 to 14AWG for versatility
• Screw termination for secure cable connection, even in vibrating systems
• Compact pitch size of 5mm to accommodate small conductors

Phoenix Contact COMBICON 5.0mm Two Part Terminal Blocks

Datasheet

Line Drawing - 1934874

4680925_Line Drawing
