90142-0014, Molex, C-Grid III Female Connector Housing, 2.54mm Pitch, 14 Way, 2 Row, Корпус разъема

Molex C-Grid III Interconnection System Connector Housings

This range of Connector Housings feature a 2.54 mm pitch and form part of the C-Grid III interconnection system from Molex. This system offers post and receptacle interconnection, with design flexibility and modular components that provide a wide range of interconnection packaging alternatives within the electronic markets. Ideal for use with a wide range of commercial and consumer applications.

Features and Benefits

• 2.54 mm pitch
• 1 to 80 Circuits
• Dual and single row housing
• Black in colour
• Wire to board configurations and fittings
• Uniform locking system in place on all contacts
• Interchangeable housing styles

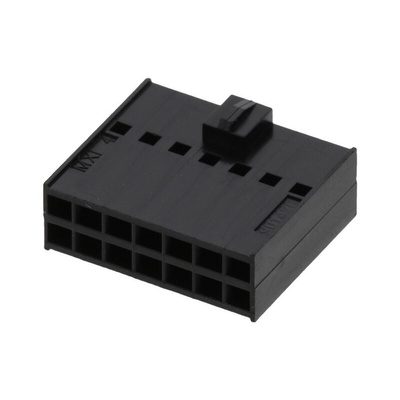

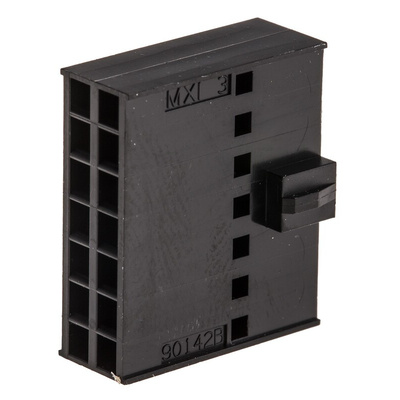

Molex Connector Housing, Straight Body Orientation, 14 Contacts - C-Grid III Series - 90142-0014

Need a way to safeguard your wire-to-board connections? Choose this connector housing from Molex. It has 14 contacts arranged in two rows, helping you to neatly organise your multi-wire electrical system. A broad operating temperature range between -55°C and +105°C means the unit isn't fazed by harsh environments. It's polarised to ensure proper mating, so you can be sure it cuts connection errors out of the equation.

Features & Benefits

• Polyphenylene oxide housing for resistance to impact, heat and chemicals
• Locking system ensures a secure connection in the event of heavy vibrations
• Burning stops in 10 seconds or less for fire safety

Applications

• HVAC systems
• Electrical enclosures
• Telecommunications networks
• Power distribution boards
• Automotive manufacturing

What current rating does this connector housing carry?

It has a current rating of 3A per contact, so it's a safe bet for low-power applications.

Standards

DIN 41651; HE13/14

2.54mm Molex C-Grid III Range
