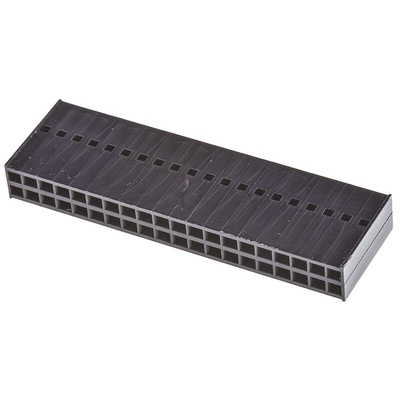

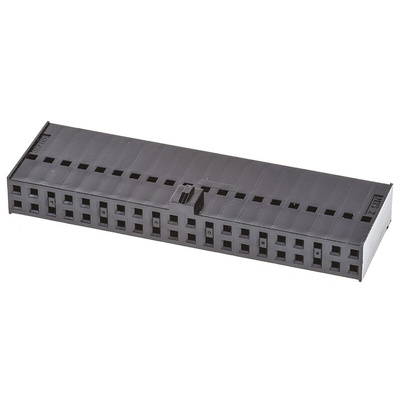

90142-0040, Molex, C-Grid III Female Connector Housing, 2.54mm Pitch, 40 Way, 2 Row, Корпус разъема

Molex C-Grid III Interconnection System Connector Housings

This range of Connector Housings feature a 2.54 mm pitch and form part of the C-Grid III interconnection system from Molex. This system offers post and receptacle interconnection, with design flexibility and modular components that provide a wide range of interconnection packaging alternatives within the electronic markets. Ideal for use with a wide range of commercial and consumer applications.

Features and Benefits

• 2.54 mm pitch
• 1 to 80 Circuits
• Dual and single row housing
• Black in colour
• Wire to board configurations and fittings
• Uniform locking system in place on all contacts
• Interchangeable housing styles

Molex Connector Housing, Straight Body Orientation, 50.8 (L) x 7.72 (W) x 15.24mm (D) - C-Grid III Series - 90142-0040

Shield sensitive electrical links on your PCB from contaminants with this connector housing from Molex. For easy compatibility, it's designed to house a crimp terminal from the C-Grid III range. The unit's double-row construction offers enough space to accommodate up to 40 terminals and keeps your wiring neat and well-organised. A lock-to-mating feature helps ensure a steady grip on your connectors. This housing fits right into your front-facing panel, thanks to its straight body orientation.

Features & Benefits

• Polarised-to-mating feature helps prevent incorrect alignment
• PPO body is insulating to cut the risk of electric shocks
• Compact external dimensions of 50.8 (L) x 7.72 (W) x 15.24mm (D) to fit neatly into complex setups

Applications

• Control panels
• Robotics systems
• Aerospace engineering

What's the pitch size of this housing?

The product has a compact pitch size of 2.5mm, so you can fit small conductors into it.

Standards

DIN 41651; HE13/14

2.54mm Molex C-Grid III Range
