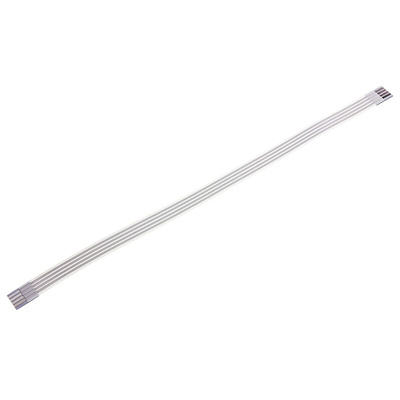

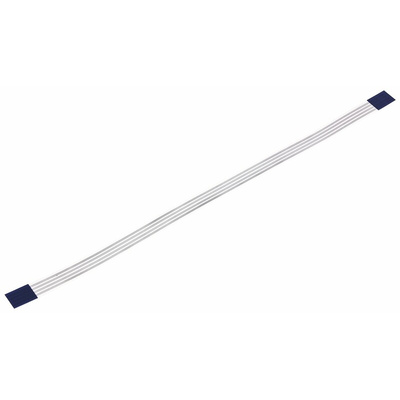

98268-0711, Molex PREMO-FLEX FFC JUMPER FFC Jumper Cable, 1.25mm Pitch, 4 Way, 152mm Cable Length, Ленточный кабель

PREMO-FLEX FFC JUMPER FFC Jumper Cable

Molex brings you an additional product to its already wide range of FFC cable jumpers. The PREMO-FLEX FFC JUMPER FFC Jumper Cable is an excellent FFC (flat flex cable) at 152mm length.

This jumper cable has a multitude of markets and applications such as;

• Automotive – this can cover Radio, CD, DVD, GPS device, LCDs, Keyboard and Moveable units


• Consumer - this can cover Set-top box’s, Camcorders and Plasma displays


• Computer – this can cover Notebooks, Printers, Scanners, Keyboards, and LCD flat panels


• Industrial


• Medical Equipment


• Military


• Home Appliance- Control Panels

Features

• Type A jumpers, contacts on same side


• Rated 30V/1.2A


• Temp Rating: -40 to +80°C


• Use with any 1.25 mm pitch FFC connectors

Benefits

• Simple assembly process


• Meets Registration Evaluation, Authorization, and Restriction of Chemicals (REACH) requirements


• Meets industry-standard ZIF connector requirements


• Ease-of-assembly in hard-to-reach applications


• Ideal for electrical connections between PCBs, display boards, etc.

PREMO-FLEX FFC JUMPER FFC Jumper Cable

Molex brings you an additional product to its already wide range of FFC cable jumpers. The PREMO-FLEX FFC JUMPER FFC Jumper Cable is an excellent FFC (flat flex cable) at 152mm length.
This jumper cable has a multitude of markets and applications such as;
• Automotive – this can cover Radio, CD, DVD, GPS device, LCDs, Keyboard and Moveable units
• Consumer - this can cover Set-top box’s, Camcorders and Plasma displays
• Computer – this can cover Notebooks, Printers, Scanners, Keyboards, and LCD flat panels
• Industrial
• Medical Equipment
• Military
• Home Appliance- Control Panels

Features and benefits

General
•Product Family: Cable
•Series: 98268
•Comments: Contacts on the same side, Type A
•Crimp Quality Equipment: Yes
•Overview: Premo-Flex™ FFC and Etched Polyimide Jumpers
•Product Name: Premo-Flex™FFC Jumper
•UPC: 822350555623
Physical
•Cable Length : 0.152m
•Circuits (Loaded): 4
•Net Weight: 0.544/g
•Packaging Type: Bag
•Pitch - Termination Interface : 1.25mm
•Temperature Range - Operating : -40°C to +105°C
•Wire Size AWG: N/A
•Wire/Cable Type: Flat Flex Cable
Electrical
•Current - Maximum per Contact : 1.4A
•Voltage - Maximum : 60V AC
Benefits
•Simple assembly process
•Meets Registration Evaluation, Authorization, and Restriction of Chemicals (REACH) requirements
•Meets industry-standard ZIF connector requirements
•Ease-of-assembly in hard-to-reach applications
•Ideal for electrical connections between PCBs, display boards, etc.
