98268-0265, Molex PREMO-FLEX FFC JUMPER FFC Jumper Cable, 1.25mm Pitch, 20 Way, 152mm Cable Length, Ленточный кабель

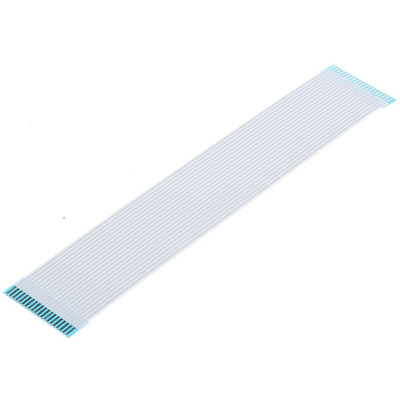

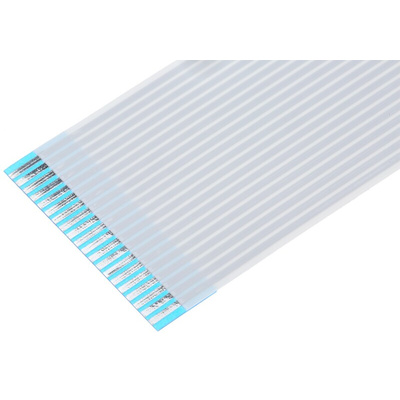

PREMO-FLEX FFC JUMPER FFC Jumper Cable

Molex brings you an additional product to its already wide range of FFC cable jumpers. The PREMO-FLEX FFC JUMPER FFC Jumper Cable is an excellent FFC (flat flex cable) at 152mm length.

This jumper cable has a multitude of markets and applications such as;

• Automotive – this can cover Radio, CD, DVD, GPS device, LCDs, Keyboard and Moveable units


• Consumer - this can cover Set-top box’s, Camcorders and Plasma displays


• Computer – this can cover Notebooks, Printers, Scanners, Keyboards, and LCD flat panels


• Industrial


• Medical Equipment


• Military


• Home Appliance- Control Panels

Features

• Type A jumpers, contacts on same side


• Rated 30V/1.2A


• Temp Rating: -40 to +80°C


• Use with any 1.25 mm pitch FFC connectors

Benefits

• Simple assembly process


• Meets Registration Evaluation, Authorization, and Restriction of Chemicals (REACH) requirements


• Meets industry-standard ZIF connector requirements


• Ease-of-assembly in hard-to-reach applications


• Ideal for electrical connections between PCBs, display boards, etc.

1.25mm FFC

PremoFlex Range Data Sheet

Datasheet
