01821.0-00, STEGO Filter Fan224 x 165mm Face Dimensions, 20m³/h, AC Operation, 230 V ac, IP55, Вентилятор

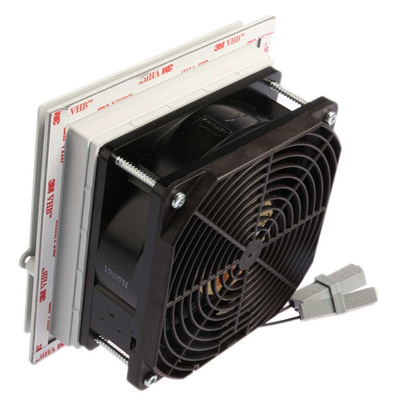

Stego Elektrotechnik Filter Fan

The Stego Elektrotechnik filter fan provides a filtered airflow of 20m³/h and has a supply voltage rating of 230VAC. This fan is designed to optimise climate efficiency within enclosures and cabinets containing electronic/electrical components. The electronic components generate heat and these units disperse that heat with cooler, filtered air from outside the enclosure. By reducing the heat inside the enclosure, this fan improves the performance and reliability of the electronic items and ultimately the cost is reduced. This fan has a face height of 224mm, face width of 165mm and installation depth of 62mm.

Features and Benefits

New air-flap outlet technology for high airflow
Easy mounting
Single filter mat system design
Filter fan located in the lower part of the enclosure draws cleaner, cooler air into the enclosure

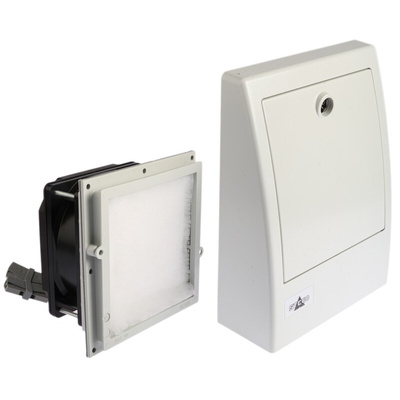

FPI system consists of a filter fan and exhaust filter (ordered separately)
Designed for indoor use

Certifications

IP55 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Approvals

7777

FF 01821 Series Data Sheet
