S8VS-18024, Omron S8VS Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 7.5A Output, 180W, Блок питания

60W to 240W S8VS Series Power Supplies

A range of switch mode power supplies from Omron with or without indication monitors and simple functions for easy system use.The units are suitable for household appliances and building automation controls which are increasingly required in commercial and residential premises.

60/90/120/180/240/480-W Models

•90-W models have an indication monitor that conforms to UL Class 2 Output standards
•New models with screwless terminal blocks and indication monitor
•3-digit, 7-segment status display

Note

Approvals

Part Number S8VS-18024

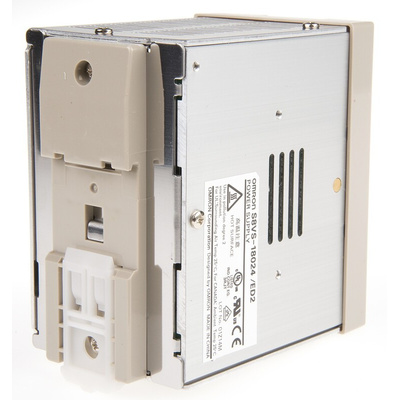

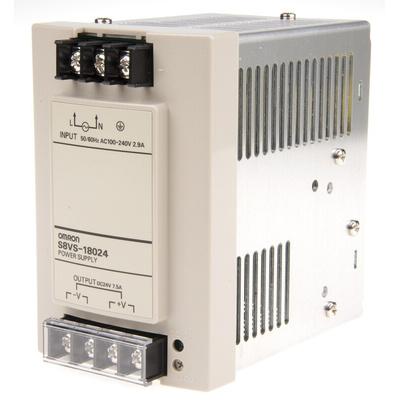

The S8VS Switch mode, Din Rail mounted power supply is a covered type, screw terminal block. S8VS-18024 has a power rating of 180 W and an output voltage of 24 V dc plus a rated input voltage of 100 V ac to 24 V ac. This Standard model incudes green output indicators plus is natural air cooling.

Features and Benefits.

•Covered type power supply
•Screw less terminal
•DIN Rail Mounted
•Green output indicators
•Natural air cooling
•Power rating 180 W
•Output voltage 24 V dc
•Input voltage 100 V ac to 240 V ac
•Rated output current 7.5A
•Harmonic current emissions
•Efficiency 88% min.
•RoHS compliant including Lead Free construction
•Weight 850 g

Safety and Storage.

Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and secure correctly ensuring limited vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.
Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.
Shock resistance 150 m/s**2 in each 6 directions 3 times.

Standards

Harmonic current emissions conform to EN61000-3-2.
Conforms to SEMI F47-0706 (when 200 V ac input is used)
UL 508/60950-1, CSA C22.2 No. 107.1/60950/1 EN50178 (=VDE 0160),
EN60950-1 (=VDE 0805 Teil 1)
