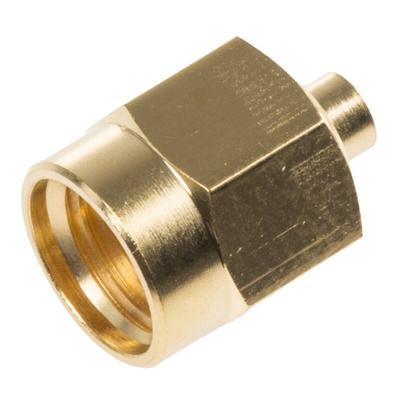

1-1478904-0, TE Connectivity 50Ω Straight Cable Mount SMA Connector, Plug, RG405, Разъем

4683047
Номер производителя: 1-1478904-0Производитель: TE Connectivity
Цена за шт.
3036.00 руб. (С НДС) *
Количество 15+ 50+
Цена 2892.00 руб. 2361.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

TE Connectivity SMA RF Coaxial Cable Connectors – Solder Termination

SMA RF coaxial plug and jack cable connectors for with a lightweight, compact design ideal for use in applications where space is limited. These SMB RF coaxial cable connectors offer an excellent electrical performance from DC to 18 GHz with interface is that is fully compatible with Mil-C-39012. The threaded coupling mechanism of these SMA RF coaxial cable connectors provides a secure vibration proof connection. SMA RF coaxial cable connectors are constructed from stainless steel or brass with a choice of platings including, nickel, gold and white bronze for use in different applications.

Features and Benefits

• Subminiature space saving design
• Excellent electrical performance from DC to 18 GHz
• Threaded vibration proof coupling mechanism
• Choice of platings dependent on application

Applications

These SMA RF coaxial cable connectors are for use in the wireless telecommunications industry. Applications include radio, mobile phone and WiFi antennas, base stations, instrumentation, PC/LAN, fixed and broadcast Satellite Communications, Standard Frequency and Time Satellite

Gold Plated

Connectors with stainless steel bodies and gold plating, which will mate with connectors conforming to MIL-C-39012 and BS 9210 N0006. Available for a variety of cable sizes, mounting configurations and cable and contact termination arrangements.

Good high frequency performance at high power ratings in small diameters
Connector variants suitable for semi-rigid or flexible cables
For use with most commonly used microwave cables
Captive contact versions ensure correct positioning when mating to other assemblies

Техническая спецификация
pdfSMA Connector Dimensional Drawing
Импеданс:
50Ом
Кабель - тип:
RG405
Концевая заделка:
Crimp
Материал контактов:
Латунь
Ориентация корпуса:
Прямой
Переборка:
Нет
Покрытие контактов:
Gold over Nickel over Copper
Покрытие корпуса:
Золото
Рабочая температура - максимальная:
+165°C
Рабочая температура - минимальная:
-65°C
Рабочая частота:
0 to 18GHz
Род:
Male
Тип коаксиального разъема:
SMA Разъем
Тип монтажа:
Кабельное крепление
