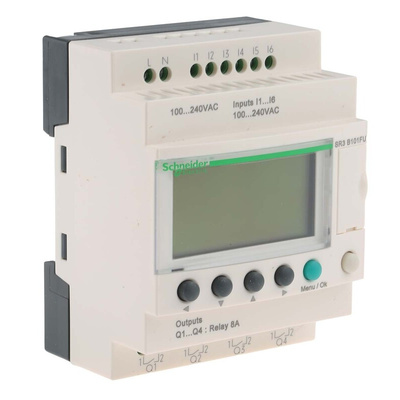

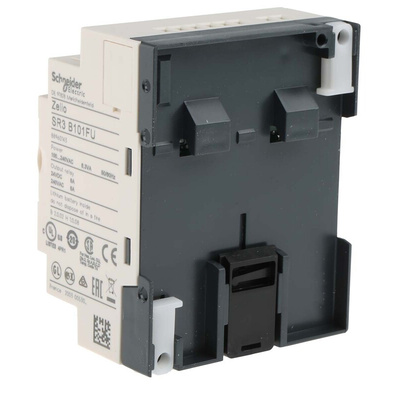

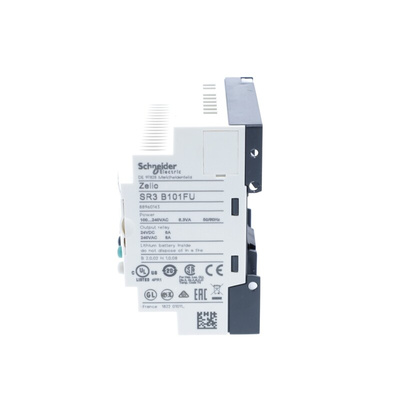

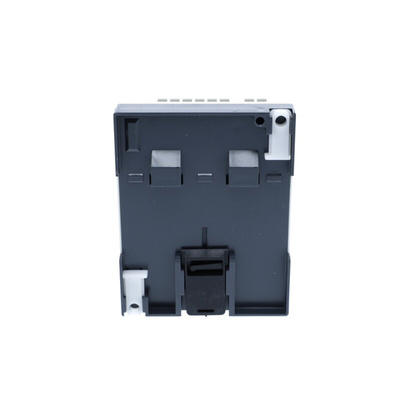

SR3B101FU, Schneider Electric Zelio Logic Smart Series Logic Module, 100 → 240 V ac Supply, Relay Output, 6-Input, Discrete, Логический модуль

Schneider Electric Logic Module, 6 Inputs, 4 Outputs - Zelio Logic Series - SR3B101FU

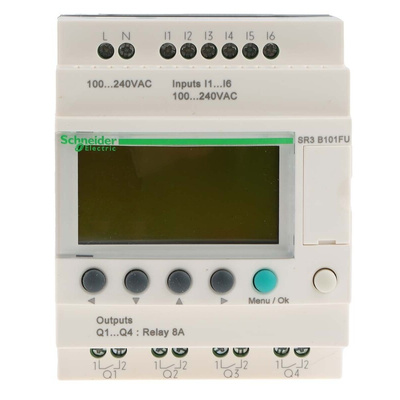

This logic module from Schneider Electric is designed to reliably manage simple automation processes. It lets you easily control and monitor equipment either on-site or remotely and is suitable to use in both industrial and commercial settings. Function buttons located on the front face of the module make it convenient to operate. Its LCD (liquid crystal display) is clear and easy to read in most light conditions. This PLC (programmable logic controller) has 6 inputs and 4 outputs, so you can use it with a number of I/O (input/output) devices simultaneously.

Features & Benefits

• Low power consumption for improved energy efficiency
• Screw terminals for durable electrical connections that withstand vibration and shock
• Electrical durability of up to 500,000 cycles for an extended service life
• Wide operating temperature range of -20°C to +55°C when housed in a ventilated enclosure

Applications

• Building ventilation
• Warehouse lighting systems
• Control systems for smaller machinery

What's the operating temperature range of this module if it's mounted in a non-ventilated enclosure?

If you use this module in a non-ventilated enclosure then its operating temperature range is -20°C to +40°C, so it's suitable for industrial use.

Schneider Electric Zelio Logic 2 Smart Relay - Additional Info:

Schneider Electric now offers a new generation of expandable intelligent relays, offering substantial advantages in flexibility and functionality. Zelio Logic 2 Smart Relay is the optimum solution to control tasks such as automating small machines within industry, lighting, HVAC and access control within buildings.

With the small footprint, simple programming, powerful control functions and the possibility of changing or modifying the program in case of changed application requirements, it offers great savings in space and price compared to other options.

Choose between two new series - Compact and Modular. The Compact series is not expandable and is available with the following I/O block sizes: 10 I/O, 12 I/O and 20 I/O.
The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages.
User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.
