SR3B261BD, Schneider Electric Zelio Logic Series Logic Module, 24 V dc Supply, Relay Output, 16-Input, Analogue, Discrete Input, Логический модуль

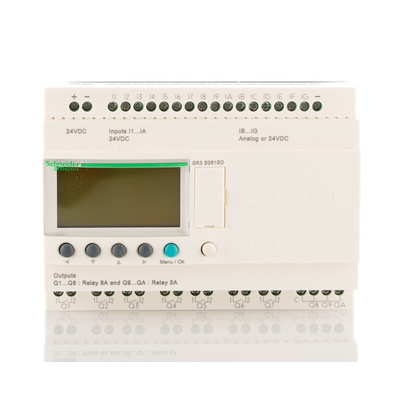

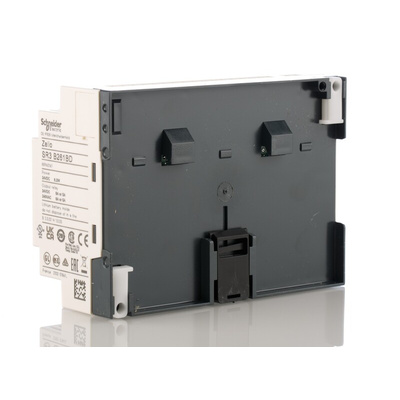

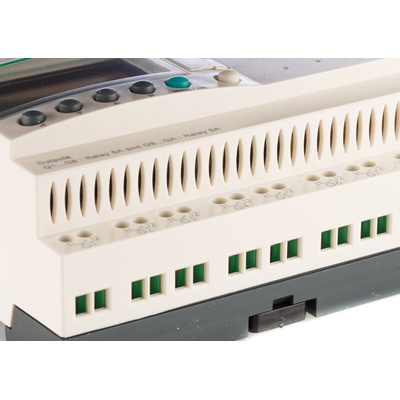

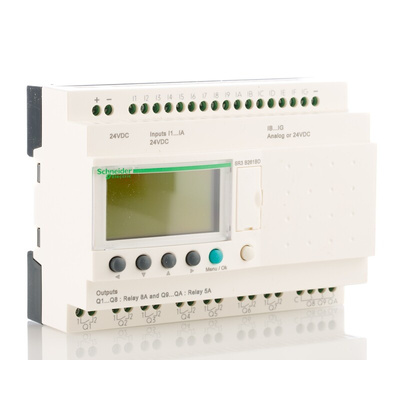

Schneider Electric Logic Module, 16 Inputs, 10 Outputs - Zelio Logic Series - SR3B261BD

Easily regulate and monitor your electrical installations, thanks to this Schneider Electric logic module. The computerised PLC device (programmable logic controller) can be used where reliable control, simple programming and fault diagnosis are essential. The digital module works via input and output signals for control systems ranging from 16 to 10 I/O. That makes it an ideal unit to service a wide range of automation applications.

Features & Benefits

• Easily programmed remotely as well as on-site via a simple control panel
• DIN railor panel-mounting screw terminals for fixing versatility
• Flexibility with the number of stand-alone devices you need to input/output to
• LCD backlight display for easy readability of data
• Low power consumption with 24V DC supply

Applications

• Control systems for smaller machinery
• Heating and air conditioning controls
• Lighting management

What are PLC inputs and outputs?

In a PLC unit, there are dedicated modules for inputs and outputs. An input module detects the status of input signals such as push buttons, switches and temperature sensors. An output module controls devices such as relays, motor starters and lights.

Schneider Electric Zelio Logic 2 Smart Relay - Additional Info:

Schneider Electric now offers a new generation of expandable intelligent relays, offering substantial advantages in flexibility and functionality. Zelio Logic 2 Smart Relay is the optimum solution to control tasks such as automating small machines within industry, lighting, HVAC and access control within buildings.

With the small footprint, simple programming, powerful control functions and the possibility of changing or modifying the program in case of changed application requirements, it offers great savings in space and price compared to other options.

Choose between two new series - Compact and Modular. The Compact series is not expandable and is available with the following I/O block sizes: 10 I/O, 12 I/O and 20 I/O.
The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages.
User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.
